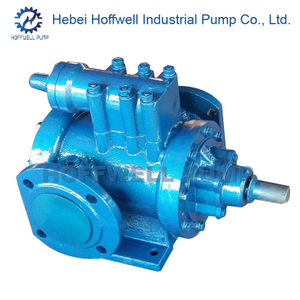

CE Approved Double Suction Fuel Oil Triple Screw Pump

Quantity:

Application
It applies to deliver clean and non-corrosive medium which has lubricating troperty at temperature beow 150 deg C \with the viscosity of 5-760cSt, The pump's working pressure range from 0.6MPa to 2.5MPa and flow capacity range from 0.6-123m3/h.

Feature
(1)Medium is delivered in axial direction continuously without agitation and pulsation.
(2)Small vibration and low noise
(3)High pressure and high efficiency
(4)Simple structure, easy disassembly and assembly
(5)Small volume and lighe weight
(6)Slight wear and long life of the pump
Structure: The pumps are sealed generally by mechanical seal and driven by the motor through the claw coupling.

Material:
The driving and driven screw 16MnCrS5, 40Cr, 45, 38CrMoALA Pump casing: HT200, QT450-10, ZCuSn10Pl, ZG270-500

Example of pump model
Eg: 3G25 X 4-46
3G: Three screw pump
25: Out-side dizmeter of the driving screw 25mm
4: Potch number of the screw
46: 46° Pitch angle of the screw
R: Hezvy fuel oil
R: Light fuel oil
W: High temperature heated oil
N: High visc oil
A: Code of design improvement
S: Double suction

Conveying Medium:

1. Clean lubricating liquid, such as lubricant, mineral oil, synthetic hydraulic fluid, natural oil, etc.
2. Medium with worse lubricating property, such as light fuel oil, heavy fuel oil, cool tar, asphalt, viscose, emulsified mixture, etc.


CE Approved 3G50X2 Triple Screw Pump

Other models:

Model Exhaust
Pressure
MPa
Capacity Q Speed
r/min
(NPSH)r
m
Efficiency
η %
Motor
m 3 /h L/min Power
kw
Model
25× 4-46 1.0 0.8 13 1450 4 62 0.75 Y802-4
2.5 0.6 10 60.6 1.5 Y90L-4
1.0 2.0 33 2900 4.5 59.4 1.5 Y90S-2
2.5 1.6 26 69 3 Y100L-2
30× 4-46 1.0 1.6 26 1450 4.5 63.5 1.1 Y90S-4
2.5 1.2 20 61 2.2 Y100L1-4
1.0 3.6 60 2900 5 60 2.2 Y90L-2
2.5 3.2 53 69 4 Y112M-2
36× 4-46 1.0 2.8 46 1450 4.5 66 2.2 Y100L1-4
2.5 2.4 40 66.5 4 Y112M-4
1.0 6.5 108 2900 5 60.5 4 Y112M-2
2.5 6 100 72 7.5 Y132S2-2
42× 4-46 1.0 4.8 80 1450 5 62 4 Y112M-4
2.5 4.2 70 73 5.5 Y132S1-4
1.0 10.5 175 2900 5.5 61 5.5 Y132S1-2
2.5 10 166 72 15 Y160M2-2
45× 4-46 1.0 6.3 106 1450 5 70 3 Y100L2-4
2.5 5.9 99 74 7.5 Y132M-4
1.0 13.5 225 2900 5.5 60 7.5 Y132S2-2
2.5 13 217 75 15 Y160M2-2
60× 4-46 1.0 15.5 255 1450 5 71.3 11 Y160M-4
2.5 14.5 245 74 15 Y160L-4
1.0 32 533 2900 5.5 63 18.5 Y160L-2
2.5 31.5 525 77 37 Y200L2-2
70× 2-46 0.6 24 400 1450 5 71 7.5 Y132M-4
1.0 23.5 390 75 11 Y160M-4
1.6 22.5 370 76 15 Y160L-4
70× 4-46 1.0 24.5 408 1450 5 72.5 18.5 Y180M-4
2.5 23.5 392 79 30 Y200L-4
80× 2-46 0.6 36.5 608 1450 5 72 11 Y160M-4
1.0 35 594 75.5 18.5 Y180M-4
1.6 34.5 575 76.5 22 Y180L-4
80× 4-46 1.0 37 617 1450 5.5 72 30 Y200L-4
2.5 35 590 78.1 45 Y225M-4
100× 2-46 0.6 72.5 1208 1450 5 73 22 Y180L-4
1.0 71 1183 77 37 Y225S-4
1.6 60.5 1158 79 45 Y225M-4
100× 4-46 1.0 72.5 1208 1450 5.5 73 55 Y250M-4
2.5 70 1165 78.5 75 Y280S-4
S100× 3-27 0.6 72 1196 1450 6 62 22 Y180L-4
1.6 70 1160 72 55 Y250M-4
2.5 69 1145 74 75 Y280S-4
S120× 3-27 0.8 123 2055 1450 6 74.5 55 Y250M-4
1.5 120 2010 76 90 Y280M-4
2.5 115 1920 78.5 132 Y315M-4
