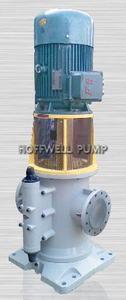

Industrial Petrochemical Triple Screw Pump

Availability:

Quantity:



Inquire Add to Basket

Product Description

Application:
It applies to delivery clean and non-corrosive medium which has lubricating property at temperature below 150ºC with the viscosity of 5-760cSt, The pump's working pressure range from 0.6Mpa to 1.6Mpa and flow and rate range from 0.6m⊃3;/h to 123m⊃3;/h.
They are mainly suited to fuel dilivering, hydraulic engineering shiping engineering, petrochemical and other industry fields,

Feature:
(1)Medium is delivered in axial direction continuously. Without agitation and pulsation.
(2)Small vibration and low noise.
(3)High preesure and high efficiency.
(4)Simple structure easy disassembly and assembly.
(5)Small volume and light weight.
(6)Slight wear and long life of the pump.

Structure:
The pumps are sealed generally by mechanical seal and driven by the motor through thr claw coupling.

Model	Exhaust Pressure MPa	Capacity Q		Speed r/min	(NPSH)r m	Efficiency η %	Motor
Model	Exhaust Pressure MPa	m 3 /h	L/min	Speed r/min	(NPSH)r m	Efficiency η %	Power kw	Model
25×4-46	1.0	0.8	13	1450	4	62	0.75	Y802-4
	2.5	0.6	10	1450	4	60.6	1.5	Y90L-4
	1.0	2.0	33	2900	4.5	59.4	1.5	Y90S-2
	2.5	1.6	26	2900	4.5	69	3	Y100L-2
30×4-46	1.0	1.6	26	1450	4.5	63.5	1.1	Y90S-4
	2.5	1.2	20	1450	4.5	61	2.2	Y100L1-4
	1.0	3.6	60	2900	5	60	2.2	Y90L-2
	2.5	3.2	53	2900	5	69	4	Y112M-2
36×4-46	1.0	2.8	46	1450	4.5	66	2.2	Y100L1-4
	2.5	2.4	40	1450	4.5	66.5	4	Y112M-4
	1.0	6.5	108	2900	5	60.5	4	Y112M-2
	2.5	6	100	2900	5	72	7.5	Y132S2-2
42×4-46	1.0	4.8	80	1450	5	62	4	Y112M-4
	2.5	4.2	70	1450	5	73	5.5	Y132S1-4
	1.0	10.5	175	2900	5.5	61	5.5	Y132S1-2
	2.5	10	166	2900	5.5	72	15	Y160M2-2
45×4-46	1.0	6.3	106	1450	5	70	3	Y100L2-4
	2.5	5.9	99	1450	5	74	7.5	Y132M-4
	1.0	13.5	225	2900	5.5	60	7.5	Y132S2-2
	2.5	13	217	2900	5.5	75	15	Y160M2-2
60×4-46	1.0	15.5	255	1450	5	71.3	11	Y160M-4
	2.5	14.5	245	1450	5	74	15	Y160L-4
	1.0	32	533	2900	5.5	63	18.5	Y160L-2
	2.5	31.5	525	2900	5.5	77	37	Y200L2-2
70×2-46	0.6	24	400	1450	5	71	7.5	Y132M-4
	1.0	23.5	390			75	11	Y160M-4
	1.6	22.5	370			76	15	Y160L-4
70×4-46	1.0	24.5	408	1450	5	72.5	18.5	Y180M-4
70×4-46	2.5	23.5	392	1450	5	79	30	Y200L-4
80×2-46	0.6	36.5	608	1450	5	72	11	Y160M-4
	1.0	35	594			75.5	18.5	Y180M-4
	1.6	34.5	575			76.5	22	Y180L-4
80×4-46	1.0	37	617	1450	5.5	72	30	Y200L-4
80×4-46	2.5	35	590	1450	5.5	78.1	45	Y225M-4
100×2-46	0.6	72.5	1208	1450	5	73	22	Y180L-4
	1.0	71	1183			77	37	Y225S-4
	1.6	60.5	1158			79	45	Y225M-4
100×4-46	1.0	72.5	1208	1450	5.5	73	55	Y250M-4
100×4-46	2.5	70	1165	1450	5.5	78.5	75	Y280S-4
S100×3-27	0.6	72	1196	1450	6	62	22	Y180L-4
	1.6	70	1160			72	55	Y250M-4
	2.5	69	1145			74	75	Y280S-4
S120×3-27	0.8	123	2055	1450	6	74.5	55	Y250M-4
	1.5	120	2010			76	90	Y280M-4
	2.5	115	1920			78.5	132	Y315M-4
