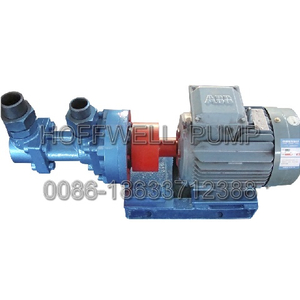

3G Series Self-priming Fuel Oil Triple Screw Pump

Availability:

Quantity:



Inquire Add to Basket

Product Description

3G Series Fuel Oil Triple Screw Pump

>>>Product Features:
1. Good self-priming and suction performance
2. Wide medium range, including liquid with slight lubricity
3. Minimal flow pulse, state operation and small vibration and noise.
4. No shear or damage of the conveyed medium, so the conveyed medium is not easy to be aging.
5. High efficiency, energy saving, high reliability.
6. Long service life, simple maintenance and low cost.

>>>Conveying Medium:
1. Clean lubricating liquid, such as lubricant, mineral oil, synthetic hydraulic fluid, natural oil, etc.
2. Medium with worse lubricating property, such as light fuel oil, heavy fuel oil, cool tar, asphalt, viscose, emulsified mixture, etc.

>>>3G Triple Screw Pump Application:
It applies to deliver clean and non-corrosive medium which has lubricating propertty at temperature below 150 deg C with the viscosity of 5-760cst, the pump's working pressure range from 0.6Mpa to 4Mpa and flow rate range from 0.6m3/h to 123m3/h.
They are mainly suited to fuel delivering, hydraulic engineering, shiping engineering, petrochemical and other industry fields.

>>>FAQ---Frequently Asked Question
1. How to get our quotation in time, pls answer following questions:
A. What liquid do you transfer? Oil, Water, Food or Corrosive Chemical liquid, with solid particle or not, and so on~
B. What's the flow or capcity (m3/h, L/m)?
C. What's the discharge head (m, feet, Mpa, bar )
If you do not have any request, we will do as our normal standard.
D. Contact us to get the quotation
2.OEM: OK
3. MOQ: 1set
4. Package: standard export Plywood Case or Styrofoam with Carton
5. Shipping ways: By sea, By air, By express
6. Lead time: 3-15days
7. Term of payment: 100% T/T, Aliexpress, L/C, Westunion
8. Warranty Period: One year, except spare parts
9. Why choose us: 20years experiences manufacturer
Good quality with competitive pirce
ISO2000, CE certificate

>>>Other models of the 3G triple screw pump

Model	Exhaust Pressure MPa	Capacity Q		Speed r/min	(NPSH)r m	Efficiency η %	Motor
Model	Exhaust Pressure MPa	m 3 /h	L/min	Speed r/min	(NPSH)r m	Efficiency η %	Power kw	Model
25×4-46	1.0	0.8	13	1450	4	62	0.75	Y802-4
	2.5	0.6	10	1450	4	60.6	1.5	Y90L-4
	1.0	2.0	33	2900	4.5	59.4	1.5	Y90S-2
	2.5	1.6	26	2900	4.5	69	3	Y100L-2
30×4-46	1.0	1.6	26	1450	4.5	63.5	1.1	Y90S-4
	2.5	1.2	20	1450	4.5	61	2.2	Y100L1-4
	1.0	3.6	60	2900	5	60	2.2	Y90L-2
	2.5	3.2	53	2900	5	69	4	Y112M-2
36×4-46	1.0	2.8	46	1450	4.5	66	2.2	Y100L1-4
	2.5	2.4	40	1450	4.5	66.5	4	Y112M-4
	1.0	6.5	108	2900	5	60.5	4	Y112M-2
	2.5	6	100	2900	5	72	7.5	Y132S2-2
42×4-46	1.0	4.8	80	1450	5	62	4	Y112M-4
	2.5	4.2	70	1450	5	73	5.5	Y132S1-4
	1.0	10.5	175	2900	5.5	61	5.5	Y132S1-2
	2.5	10	166	2900	5.5	72	15	Y160M2-2
45×4-46	1.0	6.3	106	1450	5	70	3	Y100L2-4
	2.5	5.9	99	1450	5	74	7.5	Y132M-4
	1.0	13.5	225	2900	5.5	60	7.5	Y132S2-2
	2.5	13	217	2900	5.5	75	15	Y160M2-2
60×4-46	1.0	15.5	255	1450	5	71.3	11	Y160M-4
	2.5	14.5	245	1450	5	74	15	Y160L-4
	1.0	32	533	2900	5.5	63	18.5	Y160L-2
	2.5	31.5	525	2900	5.5	77	37	Y200L2-2
70×2-46	0.6	24	400	1450	5	71	7.5	Y132M-4
	1.0	23.5	390			75	11	Y160M-4
	1.6	22.5	370			76	15	Y160L-4
70×4-46	1.0	24.5	408	1450	5	72.5	18.5	Y180M-4
70×4-46	2.5	23.5	392	1450	5	79	30	Y200L-4
80×2-46	0.6	36.5	608	1450	5	72	11	Y160M-4
	1.0	35	594			75.5	18.5	Y180M-4
	1.6	34.5	575			76.5	22	Y180L-4
80×4-46	1.0	37	617	1450	5.5	72	30	Y200L-4
80×4-46	2.5	35	590	1450	5.5	78.1	45	Y225M-4
100×2-46	0.6	72.5	1208	1450	5	73	22	Y180L-4
	1.0	71	1183			77	37	Y225S-4
	1.6	60.5	1158			79	45	Y225M-4
100×4-46	1.0	72.5	1208	1450	5.5	73	55	Y250M-4
100×4-46	2.5	70	1165	1450	5.5	78.5	75	Y280S-4
S100×3-27	0.6	72	1196	1450	6	62	22	Y180L-4
	1.6	70	1160			72	55	Y250M-4
	2.5	69	1145			74	75	Y280S-4
S120×3-27	0.8	123	2055	1450	6	74.5	55	Y250M-4
	1.5	120	2010			76	90	Y280M-4
	2.5	115	1920			78.5	132	Y315M-4
