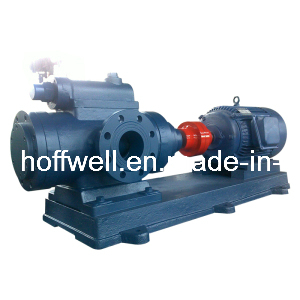

Stainless Steel Heat Insulation Fuel Oil Triple Screw Pump (3QGB)

Quantity:

Stainless Steel Heat Insulation Fuel Oil Three screw Pump (3QGB)

3QGB Stainless Steel Heat Insulation fuel oil Triple Screws Pump with warm jacket

1, Application:
It applies to deliver clean and non-corrosive medium which has lubricating property at temp blow 150 with the viscosity of 3-760cst. The pump working pressure range from 0.6mpa to 2.5mpa and flow rate range from 0.6m3/h to 123m3/h. They are main suited to fuel delivering, hydraulic engineering, shipping engineering, petrochemical and other industry fields.

2, Feature
(1) medium is delivered in axial direction continuously without agitation and pulsation
(2) small vibration and low noise
(3) high pressure and high efficiency
(4) simple structure, easy disassemble and assembly
(5) small volume and light weight
(6) slight wear and long life

3, Structure:
The pumps are sealed generally by mechanical seal and driven by the motor through the claw coupling.

4, Materials:
Driving and driven screw: 16MnCrS5, 40Cr, 46, 38CrMoAl
Pump body: HT200, QT450-10, ZCuSn10P1, ZG270-500

ModelPressure
MPa
CapacitySpeed
 r/min
rmEfficiency
η %
Motor
m 3 /hL/minpower kwmodel
25×4-461.00.81314504620.75Y802-4
2.50.61060.61.5Y90L-4
1.02.03329004.559.41.5Y90S-2
2.51.626693Y100L-2
    30×4-461.01.6261450  4.563.51.1Y90S-4
2.51.220612.2Y100L1-4
1.03.6602900 602.2Y90L-2
2.53.253694Y112M-2
36×4-461.02.846    1450    4.5662.2Y100L1-4
2.52.44066.54Y112M-4
1.06.51082900560.54Y112M-2
2.56100727.5Y132S2-2
42×4-461.04.88014505624Y112M-4
2.54.270735.5Y132S1-4
1.010.5175  2900  5.5615.5Y132S1-2
2.5101667215Y160M2-2
45×4-461.06.3106  1450  5703Y100L2-4
2.55.999747.5Y132M-4
1.013.5225  2900  5.5607.5Y132S2-2
2.5132177515Y160M2-2
    60×4-461.015.5255  1450  571.311Y160M-4
2.514.52457415Y160L-4
1.032533  2900  5.56318.5Y160L-2
2.531.55257737Y200L2-2
70×2-460.624400  1450  5717.5Y132M-4
1.023.53907511Y160M-4
1.622.53707615Y160L-4
  70×4-461.024.5408  1450  572.518.5Y180M-4
2.523.53927930Y200L-4
  80×2-460.636.5608  1450  57211Y160M-4
1.03559475.518.5Y180M-4
1.634.557576.522Y180L-4
  80×4-461.037617  1450  5.57230Y200L-4
2.53559078.145Y225M-4
100×2-460.672.51208  1450  57322Y180L-4
1.07111837737Y225S-4
1.660.511587945Y225M-4
100×4-461.072.512081450  5.57355Y250M-4
2.570116578.575Y280S-4
  S100×3-270.6721196  1450  66222Y180L-4
1.67011607255Y250M-4
2.56911457475Y280S-4
S120×3-270.81232055  1450  674.555Y250M-4
1.512020107690Y280M-4
2.5115192078.5132Y315M-4


>>>FAQ--- Frequently Asked Question
1. How to get our quotation in time, please answer following questions:
 A.What liquid do you transfer? Oil, Water, Food or Corrosive Chemical liquid, with solid particle or not, and so on~
 B. What's the flow or capcity (m3/h, L/m)?
 C.What's the discharge head (m, feet, Mpa, bar )
 If you do not have any request, we will do as our normal standard.
 D. Contact us to get the quotation:
2. OEM: Ok
3. MOQ: 1set
4. Package: Standar export Plywood Case or Styrofoam with Carton
5. Shipping ways: By sea, By air, By express
6. Lead time: 3-15days
7. Term of  payment:  100% T/T, Aliexpress,  L/C, Westunion
8. Why choose us: more than 20 years experiences manufacturer
                              Good quality with competitive pirce
                              ISO2000, CE certificate, CCS certificate
                              Professional after-sales service
