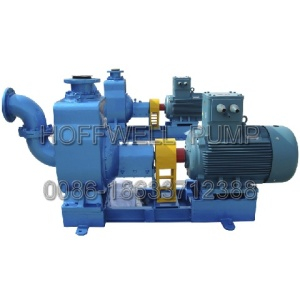

CYZ self-priming centrifugal gasoline pump

Model NO.: CYZ
Max.Capacity: >400 L/min
Impeller Number: Single-Stage Pump
Influent Type of Impeller: Single Suction Pump
Pump Casing Combined: Verticaljoint Surface Pump
Impeller: Closed
pump body material: cast iron/SS304
Shaft material: SS304
Trademark: HOFFWELL
Specification: CE SGS
HS Code: 84137099
Max.Head: 80-110m
Driving Type: Motor
Working Pressure: Low Pressure Pump
Position of Pump Shaft: Horizontal Pump
Mounting Height: Suction Centrifugal
Usage: Pumps
Impeller material: Bronze/SS304
Seal: Mechanical seal
Transport Package: Export Standard Wooden Case
Origin: China

Quantity:



Inquire Add to Basket

Product Description

Application
Type CYZ pump are used to deliver gas, kerosene diesel oil, etc. And the medium of tomperature. It is akind of load and unload oil pump in boat. And it is fitted in oil bunker, franker and of can be used to deliven seawafer fleash wcofer.

Features
This pump belongs to self-absorption centifugal oil pump, it's features are simple construction, easy operation. Well moving convenient repairing high displace ment high efficiency wide application slope etc.

Contruction
The pump is composed of suction room store liquid room vortex room, liquid returning hole, gas adn liquid dividing roon etc. The pumps adopt the single row radial bal l bearings, and have the cooling room in the bottom of the bearing stand, and a seal ring is used between the high press and low press area in the pump. They adopt mechanical seals on shaft end.

No.	Model	Capacity		Lift m	Pump NPSH m	Self-absorption properties min/5m	Speed r/min	Shaft power kw	Diameter mm	Motor
No.	Model	m 3 /h	L/min	Lift m	Pump NPSH m	Self-absorption properties min/5m	Speed r/min	Shaft power kw	Diameter mm	Model	Power kw
1	25CYZ-27	3	50	27	3	3	2900	0.6	25	YB801-2	0.75
2	40CYZ-20	6.3	105	20	3.5	2	2900	0.88	40×32	YB802-2	1.1
3	40CYZ-40 (50CYZ-40)	10	167	40	3.5	1.5	2900	2.8	50×40 (50)	YB112M-2	4
4	50CYZ-12	15	250	12	3.5	2.5	2900	1.1	50	YB90S-2	1.5
5	50CYZ-20	18	300	20	3.5	2	2900	1.8	50	YB90L-2	2.2
6	50CYZ-35	14	233	35	3.5	1.5	2900	2.7	50	YB112M-2	4
7	50CYZ-50	12.5	208	50	3.5	1.5	2900	4.3	50	YB132S1-2	5.5
8	50CYZ-60	15	250	60	3.5	1.5	2900	6.3	50	YB132S2-2	7.5
9	50CYZ-75	20	333	75	3.5	1.5	2900	9.9	50	YB160M1-2	11
10	65CYZ-15	30	500	15	4	2	2900	1.92	65	YB100L-2	3
11	65CYZ-30	25	416	30	4	2	2900	3.2	65	YB112M-2	4
12	80CYZ-13	35	583	13	4	3.5	2900	1.9	80	YB100L-2	3
13	80CYZ-17	43	716	17	4	2	2900	3.1	80	YB112M-2	4
14	80CYZ-25	50	833	25	4	1.5	2900	5.2	80	YB132S2-2	7.5
15	80CYZ-32	50	833	32	4	1.5	2900	6.8	80	YB132S2-2	7.5
16	80CYZ-55	60	1000	55	4	1.5	2900	15.0	80	YB160L-2	18.5
17	80CYZ-70	60	1000	70	4	1.2	2900	20.1	80	YB180M-2	22
18	100CYZ-40	100	1667	40	4	2	2900	18.3	100	YB180M-2	22
19	100CYZ-40A	100	1667	40	4	1.5	1470	18.5	100	YB180L-4	22
20	100CYZ-65	100	1667	65	4	2	2900	27.7	100	YB200L1-2	30
21	100CYZ-75	70	1167	75	4	2	2900	24.2	100	YB200L1-2	30
22	150CYZ-55	160	2667	55	5	2	2900	38.1	150	YB225M-2	45
23	150CYZ-65	170	2833	65	5	1.3	1470	51.0	150	YB250M-4	55
24	200CYZ-63	280	4667	63	5	1.5	1480	75.1	200	YB280M-4	90
25	80CYZ-125	50	833	125	4	1.5	2900	41.3	80	YB250M-2	55
26	100CYZ-125	100	1667	125	4	1.5	2900	69.4	100	YB280S-2	75
27	150CYZ-125	150	2500	125	5	1.5	2900	93	150	YB315S-2	110
28	200CYZ-125	200	3333	125	5	1.5	2900	119.7	200	YB315M-2	132
29	250CYZ-50	400	6666	50	6	1.5	1480	77.2	250	YB280M-4	90

FAQ--- Frequently Asked Question
1. How to get our quotation in time, please answer following questions:
A.What liquid do you transfer? Oil, Water, Food or Corrosive Chemical liquid, with solid particle or not, and so on~
B. What's the flow or capcity (m3/h, L/m)?
C.What's the discharge head (m, feet, Mpa, bar )
If you do not have any request, we will do as our normal standard.
D. Contact us to get the quotation:
2. OEM: Ok
3. MOQ: 1set
4. Package: Standar export Plywood Case or Styrofoam with Carton
5. Shipping ways: By sea, By air, By express
6. Lead time: 3-15days
7. Term of payment: 100% T/T, Aliexpress, L/C, Westunion
8. Why choose us: more than 20 years experiences manufacturer
Good quality with competitive pirce
ISO2000, CE certificate, CCS certificate
Professional after-sales service
