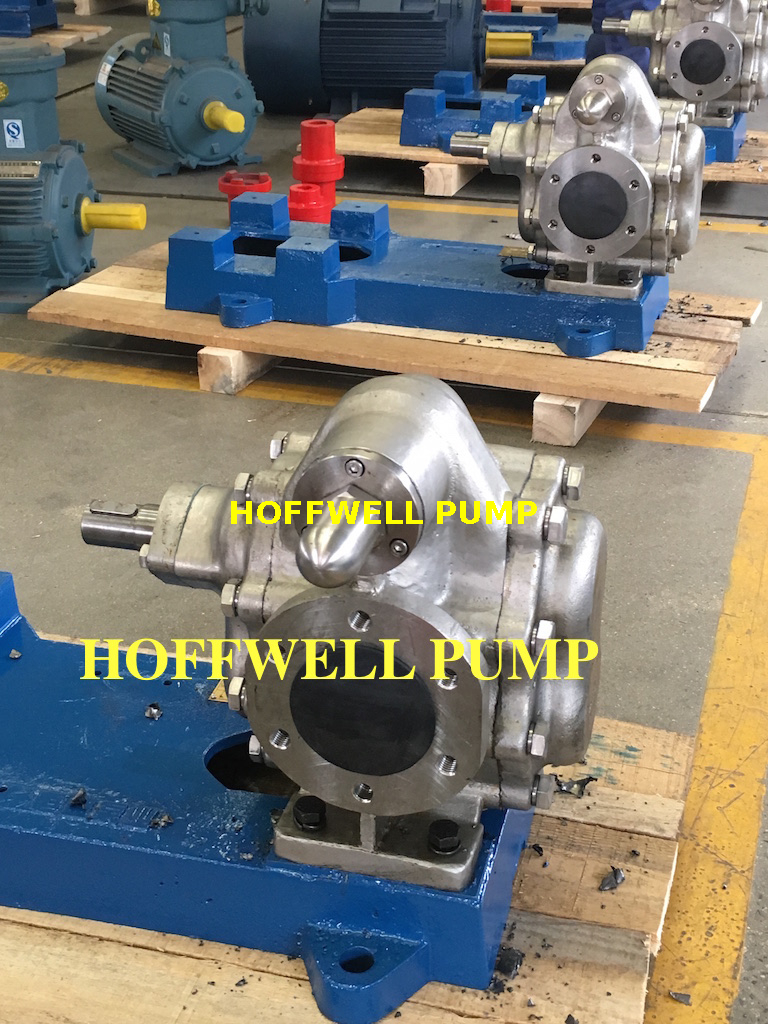

3 Inch Magnetic Drive KCB External Gear Pump

  • KCB483.3
  • HOFFWELL
  • 84136029
Material:
Liquid:
Temperature:
Seal:
Bearing:
Quantity:

KCB Stainless Steel External Gear Pump


>>>Structural features of KCB series gear pumps:

This series of gear pumps are mainly composed of gear, shaft, pump body, valve, shaft end seal (special requirements, optional magnetic drive, zero leakage structure). The gear has high hardness and strength through heat treatment and is installed with the shaft in the commutable shaft sleeve. The lubrication of all parts in the pump is automatically achieved by using the output medium when the pump works.

The pump has a reasonable design of oil drain and return groove, is the gear in the work of the torque bearing force is small, so the bearing load is small, wear is small, pump efficiency is high.

The pump is equipped with a safety valve as overload protection. The full return pressure of the safety valve is 1.5 times the rated discharge pressure of the pump. It can also be adjusted according to actual needs within the allowable discharge pressure range. But note that this safety valve can not be used as a pressure reducing valve for a long time.

Viewed from the extension of the spindle to the pump, it rotates clockwise.

KCB06


>>>KCB external gear pump uses:

It is suitable for transporting lubricating oil without solid particles and fibers, temperature not higher than 300 C, viscosity 5 - 1500 cSt or other liquids similar to lubricating oil.

Reduce the speed of the pump, the viscosity of the conveying medium can reach 50000mm2/s.


>>>KCB extenral gear pump application:

1. In the oil system can be used for transmission, booster pump;
2. In the fuel oil system can be used as a transport, pressure, jet fuel pump
3. In the hydraulic drive system can be used to provide hydraulic power of hydraulic pump;
4. In all industrial fields, all can be used as lubricating oil pump.


>>>KCB external gear pump mechanical seal

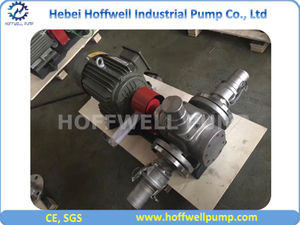

幻灯片1



>>>KCB483.3 external gear pump specifications

Model Capacity Head NPSH r Speed Power Dia of Inlet Dia of Outlet Efficiency Delivery time
KCB483.3 29m3/h 0.36Mpa 5.5m 1450rpm 11KW 70mm 70mm 42% within 7days

Material: SS304 material with magnetic coupling in electric motor drive


Packing dimension for complete set: 1032mm X 520mm X 605mm


Weight for complete set: 213kgs.


>>>FAQ--- Frequently Asked Question

1. How to get our quotation in time, please answer following questions:
 A.What liquid do you transfer? Oil, Water, Food or Corrosive Chemical liquid, with solid particle or not, and so on~
 B. What's the flow or capcity (m3/h, L/m)?
 C.What's the discharge head (m, feet, Mpa, bar )
 If you do not have any request, we will do as our normal standard.
 D. Contact us to get the quotation:
2. OEM: Ok
3. MOQ: 1set
4. Package: Standar export Plywood Case or Styrofoam with Carton
5. Shipping ways: By sea, By air, By express
6. Lead time: 3-15days
7. Term of  payment:  100% T/T, Aliexpress,  L/C, Westunion
8. Why choose us: more than 20 years experiences manufacturer
                              Good quality with competitive pirce
                              ISO2000, CE certificate, CCS certificate
                              Professional after-sales service


>>>Other Gear Pumps You May Like


main gear pumps


HOFFWELL-quality-controlHOFFWELL quality-guaranteeHOFFWELL-pump-testingHOFFWELL-technical HOFFWELL-factory-showHOFFWELL-manufacturing-capacity

gear-pump-packing

KCB external gear pump other models with detail informaitons


ModelCapacity QSpeed
r/min
Exhaust
Pressure
Mpa
(NPSH)r
m
Efficiency
η %
Motor
m 3 /hL/minPower
kw
Model
KCB-18.31.118.314001.455441.5Y90L-4
2CY-1.1/1.45
KCB-33.3233.314201.455442.2Y100L1-4
2CY-2/1.45
KCB-553.35514000.337411.5Y90L-4
2CY-3.3/0.33
KCB-83.3583.314200.337432.2Y100L1-4
2CY-5/0.33
KCB-13581359400.335462.2Y112M-6
2CY-8/0.33
KCB-2001220014400.335464Y112M-4
2CY-12/0.33
KCB-300183009600.365425.5Y132M2-6
2CY-18/0.36
KCB-483.329483.314400.365.54211Y160M-4
2CY-29/0.36
KCB-633386339700.2864311Y160L-6
2CY-38/0.28
KCB-9605896014700.286.54318.5Y180M-4
2CY-58/0.28
KCB-12007212007400.674337Y280S-8
KCB-160095160098045Y280S-6
KCB-180011218007400.67.54355Y315S-8
KCB-2500150250098575Y315S-6
KCB-285017028507400.684490Y315L1-8
KCB-38002303800989110Y315L1-6
KCB-410024541007430.6844132Y355M1-8
KCB-54003255400989160Y355M1-6
KCB-560033056007440.6844160Y355M2-8
KCB-76004607600989200Y355M3-6
KCB-700042070007440.6844185Y355L1-8
KCB-96005709600989250Y355L2-6
