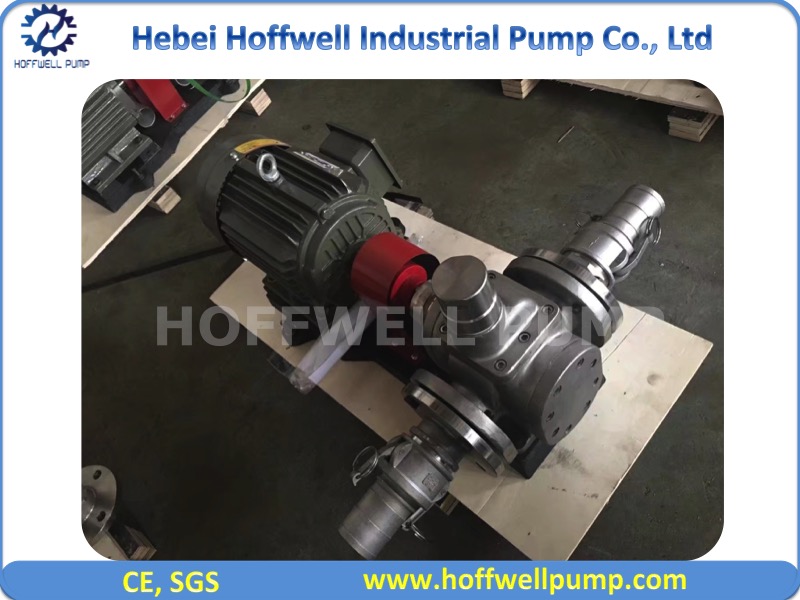

Stainless Steel Motor Driven YCB External Gear Pump

Name: Stainless Steel Motor Driven YCB External Gear Pump
Brand: HOFFWELL
SKU: 40901307
Rating: 5.0 (74 reviews)

Model:
YCB8//0.6
Brand:
HOFFWELL
Code:
84136029

Material:	SS304/SS316/SS316L
Port Size:	65mm/65mm
Temperature:	below 240 deg C
Liquid:	Food oil or corrosive oil
Seal:	Mechanical seal/Packing seal
Availability:

Quantity:



Inquire Add to Basket

YCB Stainless Steel External Gear Pump

>>>Performance

Pressure range: ≤1.6MPa

Flow range: ≤80m3/h

Temperature range: ≤240℃

The viscosity range is: 5 ~ 1500mm2/s, and the speed can be reduced to 50000mm2/s.

>>>Applacation
It applies to delivering non-corrosive lubricating-oil or equivalent liquid without solid particles and fibres at temperature below 240 deg c and with the viscosity of 5-1500cSt.It applies to hydraulicSystem,too. YCB gear pump can give performance as transferpump or booster pump in oil delivery system,and a fuel pump for delivery,pressurization and injectiion in fuel supply system.It can be also applied as hydraulic pump suplying hydraulic power in hydraulic system and in all industy fields as lubricating pump.

HOFFWELL-pump-application

Other Gear Pumps You May Like

main gear pumps

Other

external gear oil pump for furnace oil external gear lube oil pump positive displacement external gear pump motor driven external gear oil pump stainless steel external gear oil pump external gear oil pump transmission gear pump gear driven pump gear transfer pump transfer gear pump

All
Product Name
Product Keyword
Product Model
Product Summary
Product Description
Multi Field Search

Product Category

Related News

RELATED PRODUCTS

3 Inch SS304 YCB External Gear Oil Pump

Cast Steel AY Single Two-Stage Centrifugal Oil Pump

CE Approved Horizonal Multi Screw Heavy Oil Pump

RY series self-priming centrifugal oil pump

Horizontal Engine Oil Twin Screw Pump

Horizontal Lubricating Oil Twin Screw Pump

YCB-G Heating External Gear Oil Pump For Bitumen

CE Approved Light Oil Triple Three Screw Pump

RY series air-cooled stainless steel hot oil pump

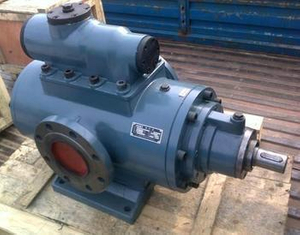

CE Approved Petroleum Triple Screw Oil Pump

CE Approved SN Spindle Screw Oil Pump

Multi-phase Heavy Oil Double Screw Pump

Multi-phase Twin Screw Crude Oil Pump

RY series air-cooled air-cooled hot oil centrifugal pump

RY Series Self-priming Centrifugal Hot Oil Pump

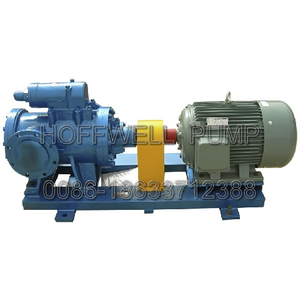

3G50X2 Lubricating Oil Triple Three Spindle Screw Pump

CE Approved 3G50X2 Heavy Oil Triple Screw Pump

CE Approved 3GCLS110X2 Main Engine Oil Screw Pump

Postive Displacement YCB External Gear Pump For Grease

Cast Iron Magnetic Drive External Gear Pump for Oil

Model	Capacity	Speed r/min	Exhaust Pressure Mpa	(NPSH)r m	Efficiency η %	Motor
Model	m3/h	Speed r/min	Exhaust Pressure Mpa	(NPSH)r m	Efficiency η %	Hz	Power kw	Model
YCB0.6-0.6	0.6	910	0.6	5.5	32	50	0.75	Y90S-6
	1.0	1390				50	0.75	Y80L2-4
	0.7	1130				60	0.75	Y90S-6
	1.2	1710				60	0.75	Y80L2-4
YCB0.6-2.5	0.6	910	2.5	7.0	70	50	1.1	Y90L-6
	1.0	1400				50	1.5	Y90L-4
	0.7	1130				60	1.1	Y90L-6
	1.2	1710				60	1.1	Y90S-4
YCB1.6-0.6	1.6	910	0.6	5.5	42	50	0.75	Y90S-6
	2.5	1400				50	1.1	Y90S-4
	1.9	1130				60	1.1	Y90L-6
	3.0	1710				60	1.5	Y90L-4
YCB1.6-2.5	1.6	940	2.5	7.0	71	50	2.2	Y112M-6
	2.5	1440				50	4	Y112M-4
	1.9	1150				60	2.2	Y112M-6
	3.0	1750				60	4	Y112M-4
YCB3.3-0.6	3.3	940	0.6	5.0	60	50	1.5	Y100L-6
	5.0	1420				50	2.2	Y100L1-4
	4.0	1150				60	1.5	Y100L-6
	6.0	1730				60	2.2	Y100L1-4
YCB3.3-2.5	3.3	960	2.5	7.0	72	50	5.5	Y132M2-6
	5.0	1440				50	7.5	Y132M-4
	4.0	1170				60	4	Y132M1-6
	6.0	1750				60	7.5	Y132M-4
YCB4-0.6	4.0	940	0.6	5.0	60	50	1.5	Y100L-6
	6.0	1420				50	2.2	Y100L1-4
	4.8	1150				60	2.2	Y112M-6
	7.2	1730				60	3	Y100L2-4
YCB4-2.5	4.0	960	2.5	7.0	72	50	5.5	Y132M2-6
	6.0	1440				50	7.5	Y132M-4
	4.8	1170				60	5.5	Y132M-6
	7.2	1750				60	7.5	Y132M-4
YCB8-0.6	8.0	960	0.6	5.0	61	50	3	Y132S-6
	12.0	1440				50	5.5	Y132S-4
	9.6	1170				60	4	Y132M1-6
	14.4	1750				60	5.5	Y132S-4
YCB8-2.5	8.0	970	2.5	7.0	75	50	11	Y160L-6
	12.0	1460				50	15	Y160L-4
	9.6	1170				60	11	Y160L-6
	14.4	1760				60	15	Y160L-4
YCB10-0.6	10.0	960	0.6	5.0	62	50	4	Y132M1-6
	15.0	1440				50	5.5	Y132S-4
	12.0	1170				60	5.5	Y132M2-6
	18.0	1750				60	7.5	Y132M-4
YCB10-2.5	10.0	970	2.5	7.0	76	50	11	Y160L-6
	15.0	1470				50	15	Y160L-4
	12.0	1170				60	11	Y160L-6
	18.0	1770				60	18.5	Y180M-4
YCB20-0.6	20.0	970	0.6	5.0	68	50	7.5	Y160M-6
YCB20-0.6	24.0	1170	0.6	5.0	68	60	7.5	Y160M-6
YCB25-0.6	25.0	970	0.6	5.5	69	50	11	Y160L-6
YCB25-0.6	30.0	1170	0.6	5.5	69	60	11	Y160L-6
YCB30-0.6	30.0	970	0.6	5.5	70	50	11	Y160L-6
YCB30-0.6	36.0	1170	0.6	5.5	70	60	11	Y160L-6
YCB40-0.6	40.0	970	0.6	5.5	72	50	15	Y180L-6
YCB40-0.6	48.0	1180	0.6	5.5	72	60	15	Y180L-6
YCB50-0.6	50.0	970	0.6	5.5	72	50	22	Y200L2-6
YCB50-0.6	60.0	1180	0.6	5.5	72	60	22	Y200L2-6
YCB60-0.6	60.0	1470	0.6	5.5	72	50	22	Y180L-4

Model	Capacity	Speed r/min	Exhaust Pressure Mpa	(NPSH)r m	Efficiency η %	Motor
Model	m3/h	Speed r/min	Exhaust Pressure Mpa	(NPSH)r m	Efficiency η %	Hz	Power kw	Model
YCB0.6-0.6	0.6	910	0.6	5.5	32	50	0.75	Y90S-6
	1.0	1390				50	0.75	Y80L2-4
	0.7	1130				60	0.75	Y90S-6
	1.2	1710				60	0.75	Y80L2-4
YCB0.6-2.5	0.6	910	2.5	7.0	70	50	1.1	Y90L-6
	1.0	1400				50	1.5	Y90L-4
	0.7	1130				60	1.1	Y90L-6
	1.2	1710				60	1.1	Y90S-4
YCB1.6-0.6	1.6	910	0.6	5.5	42	50	0.75	Y90S-6
	2.5	1400				50	1.1	Y90S-4
	1.9	1130				60	1.1	Y90L-6
	3.0	1710				60	1.5	Y90L-4
YCB1.6-2.5	1.6	940	2.5	7.0	71	50	2.2	Y112M-6
	2.5	1440				50	4	Y112M-4
	1.9	1150				60	2.2	Y112M-6
	3.0	1750				60	4	Y112M-4
YCB3.3-0.6	3.3	940	0.6	5.0	60	50	1.5	Y100L-6
	5.0	1420				50	2.2	Y100L1-4
	4.0	1150				60	1.5	Y100L-6
	6.0	1730				60	2.2	Y100L1-4
YCB3.3-2.5	3.3	960	2.5	7.0	72	50	5.5	Y132M2-6
	5.0	1440				50	7.5	Y132M-4
	4.0	1170				60	4	Y132M1-6
	6.0	1750				60	7.5	Y132M-4
YCB4-0.6	4.0	940	0.6	5.0	60	50	1.5	Y100L-6
	6.0	1420				50	2.2	Y100L1-4
	4.8	1150				60	2.2	Y112M-6
	7.2	1730				60	3	Y100L2-4
YCB4-2.5	4.0	960	2.5	7.0	72	50	5.5	Y132M2-6
	6.0	1440				50	7.5	Y132M-4
	4.8	1170				60	5.5	Y132M-6
	7.2	1750				60	7.5	Y132M-4
YCB8-0.6	8.0	960	0.6	5.0	61	50	3	Y132S-6
	12.0	1440				50	5.5	Y132S-4
	9.6	1170				60	4	Y132M1-6
	14.4	1750				60	5.5	Y132S-4
YCB8-2.5	8.0	970	2.5	7.0	75	50	11	Y160L-6
	12.0	1460				50	15	Y160L-4
	9.6	1170				60	11	Y160L-6
	14.4	1760				60	15	Y160L-4
YCB10-0.6	10.0	960	0.6	5.0	62	50	4	Y132M1-6
	15.0	1440				50	5.5	Y132S-4
	12.0	1170				60	5.5	Y132M2-6
	18.0	1750				60	7.5	Y132M-4
YCB10-2.5	10.0	970	2.5	7.0	76	50	11	Y160L-6
	15.0	1470				50	15	Y160L-4
	12.0	1170				60	11	Y160L-6
	18.0	1770				60	18.5	Y180M-4
YCB20-0.6	20.0	970	0.6	5.0	68	50	7.5	Y160M-6
YCB20-0.6	24.0	1170	0.6	5.0	68	60	7.5	Y160M-6
YCB25-0.6	25.0	970	0.6	5.5	69	50	11	Y160L-6
YCB25-0.6	30.0	1170	0.6	5.5	69	60	11	Y160L-6
YCB30-0.6	30.0	970	0.6	5.5	70	50	11	Y160L-6
YCB30-0.6	36.0	1170	0.6	5.5	70	60	11	Y160L-6
YCB40-0.6	40.0	970	0.6	5.5	72	50	15	Y180L-6
YCB40-0.6	48.0	1180	0.6	5.5	72	60	15	Y180L-6
YCB50-0.6	50.0	970	0.6	5.5	72	50	22	Y200L2-6
YCB50-0.6	60.0	1180	0.6	5.5	72	60	22	Y200L2-6
YCB60-0.6	60.0	1470	0.6	5.5	72	50	22	Y180L-4
