YCB30-0.6G
HOFFWELL
84136029
| Quantity: | |
|---|---|
>>>Brief Introduction

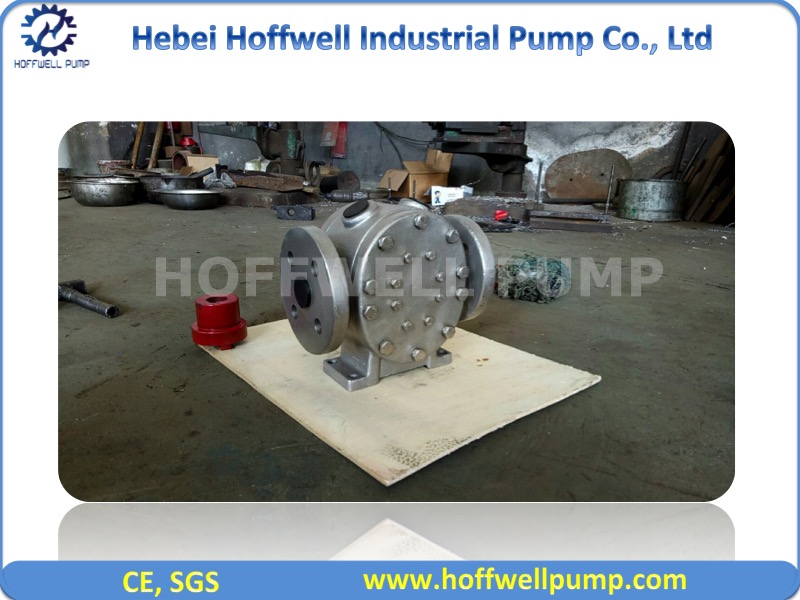

This series of heat insulating gear pump is used to transfer different medium, such as heavy oil, asphalt, resin, detergent and glue, which not includes solid particles and the temperature not higher than 300 deg C, with soildifying character under the normal temperature. It also applies to the site with heat insulated requirement in the process technology and outdoors installation at very cold area.
This series of heat insulating gear pump belong to external gear pump. The tooth form is composite formed by arc and sine Curve. It could transfer many kinds of medium with steady output flow and pressure. There are heat insulating jacket and inlet and outlet joins. on the pump casing, so it could adopt the media, such as heat-conducting oil, steam, hot water and cold water to heat, keep warm and cooling the transferred medium is larger than 1500cst, speed should be reduced.
>>>Structure of Heat Insulating Pump
This series of heat indulating gear pump had simple and compact structure. It is convenient for use and maintenance. The main parts adopt high quality steel with precise processing, so it has good quality. It has good performance of self-priming. so it needs not to be filled oil before operate the pump every time. Watch the pump from motor, the rotation direction is clockwise.
1.Pump casing
One pair of gears and four bearing stands were set in the hole of pump casing. The front cover and the back cover were set at ahead and behind. User could connect the pipe line by using fallages at beth sides, and connect the heat insulated medium to preserve heat of chamber of pump by using two screwed holes on the top of pump casing.
2.Gear and Shaft
Spiral gear and shaft compose of shaft-gear. The helical shaft and herringbone shaft gear could be adopt according to different specifications of capacity.
3.Bearing stand and bush
After the bearing and bush are fitted together, put them into the pump casing and support the gear operate.
4.Gasket
Gasket is put at compact plane between the pump body and front or back cover; it enhance the seal ability of jointing plane.
5.Shaft seal
Shaft seal has axial sealing function for the input shaft end of pump. There is shaft packing room on the front cover of pump. It could be equipped with mechanical seal or packing.
>>>Model description:
YCB---------Circular arc gear pump
25----------Capacity m3/h
0.6--------Pressure 0.6MPa
G-----------Thermal insulation type
>>>YCB30-0.6G external gear pump specifications
| Model | Capacity | Head | Speed | Power | NPSH r | Efficiency | Dia of inlet | Dia of outlet | Delivery time |
| YCB30-0.6G | 30m3/h | 6bar | 970rpm | 11KW | 5m | 62% | 70mm | 70mm | within 15days |
Material: cast steel, mechanical seal Weight for pump only: 123KGS | |||||||||
>>>FAQ--- Frequently Asked Question
1. How to get our quotation in time, please answer following questions:
A.What liquid do you transfer? Oil, Water, Food or Corrosive Chemical liquid, with solid particle or not, and so on~
B. What's the flow or capcity
(m3/h, L/m)?
C.What's the discharge head (m, feet, Mpa, bar )
If you do not have any request, we will do as our normal standard.
D. Contact us to get the quotation:
2. OEM: Ok
3. MOQ: 1set
4. Package: Standar export Plywood Case or Styrofoam with Carton
5. Shipping ways: By sea, By air, By express
6. Lead time: 3-15days
7. Term of payment: 100% T/T, Aliexpress, L/C, Westunion
8. Why choose us: more than 20 years experiences manufacturer
Good quality with competitive pirce
ISO2000, CE certificate, CCS certificate
Professional after-sales service
