YHCB80-60 Tank Truck Oil Arc Gear Pump

Model NO.: YHCB80-60
Tooth Flank: Skew Tooth
Power: Electric
Applications: Transfer Oil
Pump Body Material: Cast Iron Ht200
Shaft Material: 40cr
Trademark: HOFFWELL
Origin: Cn
Mesh Form: External Engaged
Tooth Curve: Involute
Type: Arc Gear Pump
Certification: CE, ISO
Gear Material: 40cr
Seal: Mechanical Seal
Specification: CE, SGS
HS Code: 841360299

Product Description

YHCB Tank Truck Oil Arc Gear Pump

Specification:

Capacity: 15-200 M3/H
Pressure: 0.2-0.6 Mpa
Temperature: Below 80 C
Motor Power: 3-45 Kw
Diameter: 50-200 Mm
Speed: 740-1440 R/Min
Voltage: 3 Phase/380 V/50 Hz
Explosion-Proof Grade: IP 55
Insulation Class: F

Brief Introduction:

YHCB series circle arc gear pump using Japan's advanced technology design and Produce, its outstanding characteristic is high efficiency and energy saving. Compared with ordinary gear pump, the amount of liquid transport, less energy consumption.
Ordinary gear pump capacity is 58m3/h, pressure is 2.8kg, use 18.5kw motor.
But YHCB oil pump capacity 60m3/h, pressure 6kg, use 11kw motor.

Application:

YHCB series of on-board arc pumps are mainly used in conveying viscosity in 5 to 1500 CST, the temperature is below 80 and not containing solid particles, non-corrosive, various oil medium. Gear selection of special material, can play the role of explosion-proof.
Arc gear pump can be installed in the car, with the help of take a power output shaft of automobile gearbox.

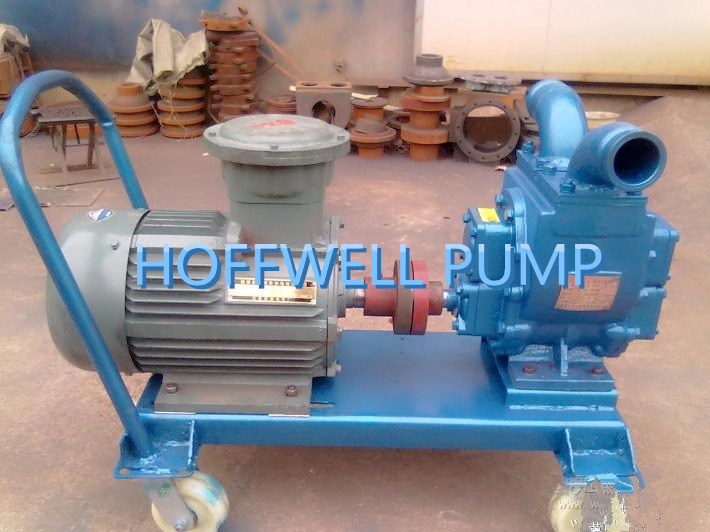

Complete set pump pic for your reference

YHCB80-60 Tank Truck Oil Arc Gear Pump

Other models:

Model	capacity Q(m3/h)	Pressure (MPa)	speedn (r/min)	efficency η(%)	Suction height (m)	motor
Model	capacity Q(m3/h)	Pressure (MPa)	speedn (r/min)	efficency η(%)	Suction height (m)	model	Power kw
50YHCB-8	8	0.4	960	76	5.5	132S-6	3
60YHCB-15	15	0.4	960	78	6	132M 1 -6	4
60YHCB-30	28	0.6	960	72	6	132M 2 -6	5.5
60YHCB-50	45	0.6	1430	78	6.5	132M-4	7.5
65YHCB-35	35	0.6	960	70	7	160M-6	7.5
76YHCB-40	40	0.6	960	70	7	160M-6	7.5
80YHCB-60	60	0.6	960	72	7	160L-6	11
80YHCB-80	80	0.4	960	70	6.5	180L-6	15
100YHCB-100	100	0.4	960	72	5.5	200L-6	22
125YHCB-150	150	0.4	960	69	5.5	250M-6	37
150YHCB-200	200	0.4	960	70	5.5	280M-6	55
