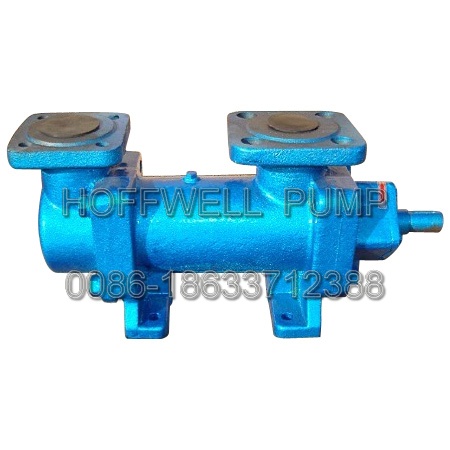

3G Series Fuel Oil Triple Screw Pump
>>>Product Features:
1. Good self-priming and suction performance
2. Wide medium range, including liquid with slight lubricity
3. Minimal flow pulse, state operation and small vibration and noise.
4. No shear or damage of the conveyed medium, so the conveyed medium is not easy to be aging.
5. High efficiency, energy saving, high reliability.
6. Long service life, simple maintenance and low cost.
>>>Conveying Medium:
1. Clean lubricating liquid, such as lubricant, mineral oil, synthetic hydraulic fluid, natural oil, etc.
2. Medium with worse lubricating property, such as light fuel oil, heavy fuel oil, cool tar, asphalt, viscose, emulsified mixture, etc.
>>>3G Triple Screw Pump Application:
It applies to deliver clean and non-corrosive medium which has lubricating propertty at temperature below 150 deg C with the viscosity of 5-760cst, the pump's working pressure range from 0.6Mpa to 4Mpa and flow rate range from 0.6m3/h to 123m3/h.
They are mainly suited to fuel delivering, hydraulic engineering, shiping engineering, petrochemical and other industry fields.
>>>3G36X6A Pump Specifications
Model | Flow | Pressure | Speed | Power | Size of inlet & outlet | Viscosity | Temperature | Efficiency |
3G36X6A | 2--6m3/h | 6Mpa | 1450-2900rpm | 5.5--18.5KW | 50/40mm | ≤760cst | ≤120 deg C | 69% |
Packing details | 1080mm*460mm*580mm for one complete set pump with export standard wooden case. | |||||||
Warranty | 12 months since delivery the pump. | |||||||
Delivery time | With 10 days. |
Professional after-sales service
>>>Other models of the 3G triple screw pump
Model | Exhaust Pressure MPa | Capacity Q | Speed r/min | (NPSH)r m | Efficiency η % | Motor | ||
m 3 /h | L/min | Power kw | Model | |||||
25×4-46 | 1.0 | 0.8 | 13 | 1450 | 4 | 62 | 0.75 | Y802-4 |
2.5 | 0.6 | 10 | 60.6 | 1.5 | Y90L-4 | |||
1.0 | 2.0 | 33 | 2900 | 4.5 | 59.4 | 1.5 | Y90S-2 | |
2.5 | 1.6 | 26 | 69 | 3 | Y100L-2 | |||
30×4-46 | 1.0 | 1.6 | 26 | 1450 | 4.5 | 63.5 | 1.1 | Y90S-4 |
2.5 | 1.2 | 20 | 61 | 2.2 | Y100L1-4 | |||
1.0 | 3.6 | 60 | 2900 | 5 | 60 | 2.2 | Y90L-2 | |
2.5 | 3.2 | 53 | 69 | 4 | Y112M-2 | |||
36×4-46 | 1.0 | 2.8 | 46 | 1450 | 4.5 | 66 | 2.2 | Y100L1-4 |
2.5 | 2.4 | 40 | 66.5 | 4 | Y112M-4 | |||
1.0 | 6.5 | 108 | 2900 | 5 | 60.5 | 4 | Y112M-2 | |
2.5 | 6 | 100 | 72 | 7.5 | Y132S2-2 | |||
42×4-46 | 1.0 | 4.8 | 80 | 1450 | 5 | 62 | 4 | Y112M-4 |
2.5 | 4.2 | 70 | 73 | 5.5 | Y132S1-4 | |||
1.0 | 10.5 | 175 | 2900 | 5.5 | 61 | 5.5 | Y132S1-2 | |
2.5 | 10 | 166 | 72 | 15 | Y160M2-2 | |||
45×4-46 | 1.0 | 6.3 | 106 | 1450 | 5 | 70 | 3 | Y100L2-4 |
2.5 | 5.9 | 99 | 74 | 7.5 | Y132M-4 | |||
1.0 | 13.5 | 225 | 2900 | 5.5 | 60 | 7.5 | Y132S2-2 | |
2.5 | 13 | 217 | 75 | 15 | Y160M2-2 | |||
60×4-46 | 1.0 | 15.5 | 255 | 1450 | 5 | 71.3 | 11 | Y160M-4 |
2.5 | 14.5 | 245 | 74 | 15 | Y160L-4 | |||
1.0 | 32 | 533 | 2900 | 5.5 | 63 | 18.5 | Y160L-2 | |
2.5 | 31.5 | 525 | 77 | 37 | Y200L2-2 | |||
70×2-46 | 0.6 | 24 | 400 | 1450 | 5 | 71 | 7.5 | Y132M-4 |
1.0 | 23.5 | 390 | 75 | 11 | Y160M-4 | |||
1.6 | 22.5 | 370 | 76 | 15 | Y160L-4 | |||
70×4-46 | 1.0 | 24.5 | 408 | 1450 | 5 | 72.5 | 18.5 | Y180M-4 |
2.5 | 23.5 | 392 | 79 | 30 | Y200L-4 | |||
80×2-46 | 0.6 | 36.5 | 608 | 1450 | 5 | 72 | 11 | Y160M-4 |
1.0 | 35 | 594 | 75.5 | 18.5 | Y180M-4 | |||
1.6 | 34.5 | 575 | 76.5 | 22 | Y180L-4 | |||
80×4-46 | 1.0 | 37 | 617 | 1450 | 5.5 | 72 | 30 | Y200L-4 |
2.5 | 35 | 590 | 78.1 | 45 | Y225M-4 | |||
100×2-46 | 0.6 | 72.5 | 1208 | 1450 | 5 | 73 | 22 | Y180L-4 |
1.0 | 71 | 1183 | 77 | 37 | Y225S-4 | |||
1.6 | 60.5 | 1158 | 79 | 45 | Y225M-4 | |||
100×4-46 | 1.0 | 72.5 | 1208 | 1450 | 5.5 | 73 | 55 | Y250M-4 |
2.5 | 70 | 1165 | 78.5 | 75 | Y280S-4 | |||
S100×3-27 | 0.6 | 72 | 1196 | 1450 | 6 | 62 | 22 | Y180L-4 |
1.6 | 70 | 1160 | 72 | 55 | Y250M-4 | |||
2.5 | 69 | 1145 | 74 | 75 | Y280S-4 | |||
S120×3-27 | 0.8 | 123 | 2055 | 1450 | 6 | 74.5 | 55 | Y250M-4 |
1.5 | 120 | 2010 | 76 | 90 | Y280M-4 | |||
2.5 | 115 | 1920 | 78.5 | 132 | Y315M-4 |
