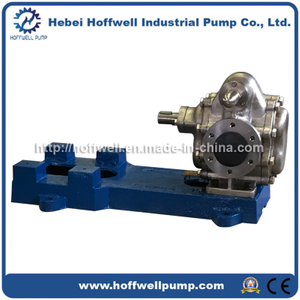

3 Inch Stainless Steel KCB External Gear Pump

  • KCB300
  • HOFFWELL
  • 84136029
Material:
Bearing:
Seal:
Safety Valve:
Temperature:
Quantity:

Product Features:
1.The pump is properly designed with leakage and return chute,which lets the gears bear the least torque force and reduces load and wear on bearings in order to raise pump´s efficiency.
2.Less teeth and small volume;the herringbone tooth structure is of good strained condition,small vibration and puissant.
3.Internal installed bearing in pump is lubricated by the conveying medium.So this pump serise is just applied to conveying lubricating liquid.

Application Scope:
KCB stainless steel external gear pump can used in food plant or chemical factory.

Conveyed Medium:
1.Food grade liquids like oil
2.Other lubricant liquids with corrosive.

KCB300 external gear pump specifications

ModelCapacityHeadSpeedPowerNPSH rEfficiencyDia of inletDia of outletDelviery time
KCB30018m3/h3.6bar960rpm5.5KW5m42%70mm70mmWtihin 10days

Material: SS304, mechanical seal with SIC/SIC/Viton

Weight for complete set: 82KGS.


>>>FAQ--- Frequently Asked Question

1. How to get our quotation in time, please answer following questions:

 A.What liquid do you transfer? Oil, Water, Food or Corrosive Chemical liquid, with solid particle or not, and so on~

 B. What's the flow or capcity
(m3/h, L/m)?

 C.What's the discharge head (m, feet, Mpa, bar )

 If you do not have any request, we will do as our normal standard.

 D. Contact us to get the quotation:

2. OEM: Ok

3. MOQ: 1set

4. Package: Standar export Plywood Case or Styrofoam with Carton

5. Shipping ways: By sea, By air, By express

6. Lead time: 3-15days

7. Term of  payment:  100% T/T, Aliexpress,  L/C, Westunion

8. Why choose us: more than 20 years experiences manufacturer

                              Good quality with competitive pirce

                              ISO2000, CE certificate, CCS certificate

                              Professional after-sales service





ModelCapacity QSpeed
r/min
Exhaust
Pressure
Mpa
(NPSH)r
m
Efficiency
η %
Motor
m 3 /hL/minPower
kw
Model
KCB-18.31.118.314001.455441.5Y90L-4
2CY-1.1/1.45
KCB-33.3233.314201.455442.2Y100L1-4
2CY-2/1.45
KCB-553.35514000.337411.5Y90L-4
2CY-3.3/0.33
KCB-83.3583.314200.337432.2Y100L1-4
2CY-5/0.33
KCB-13581359400.335462.2Y112M-6
2CY-8/0.33
KCB-2001220014400.335464Y112M-4
2CY-12/0.33
KCB-300183009600.365425.5Y132M2-6
2CY-18/0.36
KCB-483.329483.314400.365.54211Y160M-4
2CY-29/0.36
KCB-633386339700.2864311Y160L-6
2CY-38/0.28
KCB-9605896014700.286.54318.5Y180M-4
2CY-58/0.28
KCB-12007212007400.674337Y280S-8
KCB-160095160098045Y280S-6
KCB-180011218007400.67.54355Y315S-8
KCB-2500150250098575Y315S-6
KCB-285017028507400.684490Y315L1-8
KCB-38002303800989110Y315L1-6
KCB-410024541007430.6844132Y355M1-8
KCB-54003255400989160Y355M1-6
KCB-560033056007440.6844160Y355M2-8
KCB-76004607600989200Y355M3-6
KCB-700042070007440.6844185Y355L1-8
KCB-96005709600989250Y355L2-6
