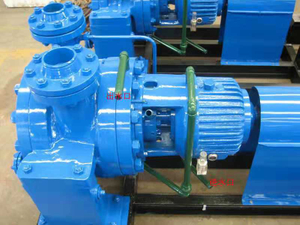

IHF Fluoro Plastic Acid Proof Centrifugal Chemical Pump

  • Model NO.: IHF40-25-125
  • Max.Capacity: >400 L/min
  • Impeller Number: Single-Stage Pump
  • Influent Type of Impeller: Single Suction Pump
  • Pump Casing Combined: Horizontal Split Pumps
  • Impeller: Open
  • Impeller Material: Teflon ( F46 )
  • Casing Liner: Teflon
  • Stationary Ring Material: Alumina Ceramic (99.9%)
  • Trademark: HOFFWELL
  • Specification: CE, ISO9001
  • HS Code: 84137099
  • Max.Head: 80-110m
  • Driving Type: Motor
  • Working Pressure: Low Pressure Pump
  • Position of Pump Shaft: Horizontal Pump
  • Mounting Height: Suction Centrifugal
  • Pump Body Material: Cast Iron Ht200
  • Shaft Material: 3Cr13
  • Gland of Mechanical Seal: Icr18ni9ti
  • Rotating Ring Material: Saturated Teflo
  • Transport Package: Export Standard Wooden Case
  • Origin: Cn
Quantity:
>>>OVERVIEW
IHF series fluorine plastic pump is single stage single suction centrifugal pumps, it adopts metal shell lining with fluorine plastic impeller, pump cover ,using metal embedded parts outsourcing fluorine plastic pressure molding. According to international standard ISO2858 design. The product structure is reasonable and reliable performance. Widely used in automobile manufacturing pickling process, acid and alkali manufacturing, painting process, non-ferrous metal smelting, the electrolyte transport project of chlorine ion membrane water and wastewater treatment, electroplating, pesticide industries.


>>>FEATURES
---Designed in accordance with ISO2858
---International Standard.
---Cast iron lined with Teflon (F46), ready for corrosive liquids.
---Bellow mechanical seal for shaft sealing.
---Flexible spacer coupling.

>>>MODEL MEANING
E. G. IHF80-65-160A
IH - Single Stage End Suction Chemical Centrifugal Pump
F - Teflon Lined Pump
80 - Suction Dia. (mm)
65 - Discharge Dia. (mm)
160 - Impeller Dia. DN (mm)
Variations: A - Impeller

>>>FAQ--- Frequently Asked Question
1. How to get our quotation in time, please answer following questions:
 A.What liquid do you transfer? Oil, Water, Food or Corrosive Chemical liquid, with solid particle or not, and so on~
 B. What's the flow or capcity (m3/h, L/m)?
 C.What's the discharge head (m, feet, Mpa, bar )
 If you do not have any request, we will do as our normal standard.
 D. Contact us to get the quotation:
2. OEM: Ok
3. MOQ: 1set
4. Package: Standar export Plywood Case or Styrofoam with Carton
5. Shipping ways: By sea, By air, By express
6. Lead time: 3-15days
7. Term of  payment:  100% T/T, Aliexpress,  L/C, Westunion
8. Why choose us: more than 20 years experiences manufacturer
                              Good quality with competitive pirce
                              ISO2000, CE certificate, CCS certificate
                              Professional after-sales service

 Performance Data
Flow Range 6.3 ~ 400m3/hr
 Head Range  5 ~ 125m
 Suction Dia.  50 ~ 200 mm
 Pump Speed  1450/2900 rpm
 Fluid Temp.  -20 ~ 120 degree C

>>>Other models:

Model    Inlet
(mm)
Outlet
(mm)
Flow
(m 3 /h)
Head
(m)
Power
(KW)
Speed
(r/min)
Efficiecy
(%)

NPSHr
(m)
IHF40-25-125 40 25 6.3 20 1.5 2900 35 3.0
3.2 5 0.55 1450 32
IHF40-25-160 40 25 6.3 50 2.2 2900 32 3.0
3.2 8 0.55 1450 28
IHF40-25-200 40 25 6.3 50 4.0 2900 25 3.0
3.2 12.5 0.55 1450 23
IHF40-25-250 40 25 6.3 80 11 2900 23 2.0
3.2 20 1.5 150 20
IHF50-32-125 50 32 12.5 20 2.2 2900 60 3.0
6.3 5 0.55 1450  32
IHF50-32-160 50 32 12.5 32 3 2900 54 3.0
6.3 8 0.55 1450  45
IHF50-32-200 50 32 12.5 50 7.5 2900 48 3.0
6.3 12.5 1.1 1450  40
IHF50-32-250 50 32 12.5 50 11 2900 33 5.0
6.3 20 1.5 1450 30
IHF65-50-125 65 50 25 20 3 2900 68 3.5
12.5 5 0.55 1450  55
IHF65-50-160 65 50 25 32 5.5 2900 65 3.5
12.5 8 0.75 1450  51
IHF65-40-200 65 40 25 50 7.5 2900 60 3.5
12.5 12.5 1.5 1450  46
IHF65-40-250 65 40 25 80 18.5 2900 49 3.5
12.5 20 4.0 1450 53
IHF80-65-125 80 65 50 20 5.5 2900 75 3.0
12.5 5 0.75 1450  64
IHF80-65-160 80 65 50 32 7.5 2900 73 2.3
12.5 8 1.5 1450  62
IHF80-50-200 80 50 50 50 15 2900 69 2.6
12.5 12.5 2.5 1450  57
IHF80-50-250 80 50 50 80 22 2900 63 2.6
12.5 20 5.5 1450  53
IHF100-80-125 100 80 100 20 11 2900 78 4.5
50 5 1.5 1450  64
IHF100-80-160 100 80 100 32 15 2900 78 4.0
50 8 2.2 1450  68
IHF100-65-200 100 65 100 50 22 2900 76 3.6
50 12.5 3 1450 64
IHF100-65-250 100 65 100 80 37 2900 72 3.8
 50  20 7.5        1450 62
IHF125-100-160 125 100 160 32 30 2900 70 5.0
80 6 4 1450 69
IHF125-100-200 125 100 200 50 55 2900 65 5.0
100 12.5 7.5 1450 64 6.0
IHF125-100-250 125 100 100 20 15 1450 63 6.0
IHF125-100-315 125 100 100 35 18.5 1450 60 3.0
IHF150-125-250 150 125 200 20 22 1450 67 7.0
IHF150-125-315 150 125 200 32 45 1450 65 7.0
IHF150-125-400 150 125 200 50 75 1450 61 7.0
IHF200-150-250 200 150 400 20 55 1450 69 7.5
IHF200-150-315 200 150 400 32 75 1450 68 7.5
IHF200-150-400 200 150 400 50 110 1450 61 7.5
