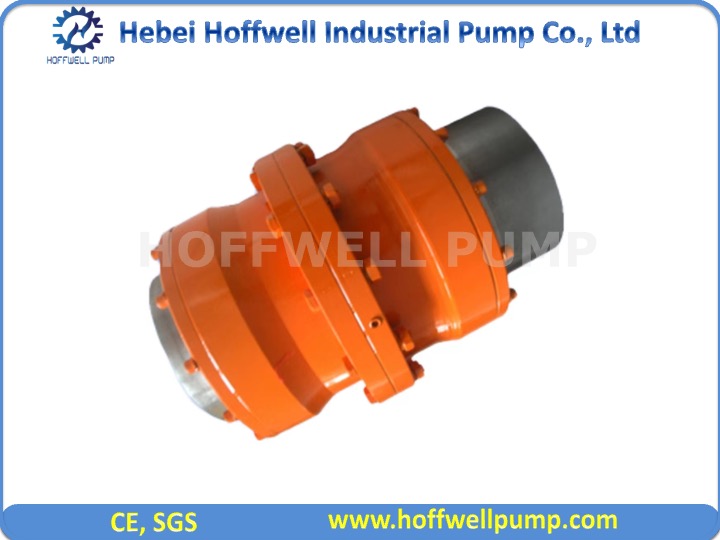

GICL Type Drum Gear Coupling

Model:
GICL Drum Gear Coupling
Brand:
HOFFWELL

Material:	45# Steel
Norminal Torque:	0.8-3200kn.M
HS Code:	8483600090
Origin :	Cangzhou, China
Availability:

Quantity:



Inquire Add to Basket

>>>GICL Type Drum Gear Coupling(JB/T 8854.3-2001)

Drum type coupling is just flexible coupling, coupling is made within the same number of ring gear and belt tooth flange half couplings and other parts. Divided into straight teeth and drum tooth outside two kinds of tooth profile, drum gear coupling Allows a larger angular displacement (as opposed to straight tooth coupling), can improve the tooth contact conditions, improve the ability to transfer torque, prolong service life.
With the radial, axial and angular and axial deviation compensation ability, has the advantages of compact structure, small turning radius, its large carrying capacity, high transmission efficiency, low noise and long maintenance cycle, especially suitable for low speed and heavy load condition, such as metallurgy, mining, lifting, transportation and other industries are also applicable to the drive shaft of petroleum and chemical industry, general machinery and other kinds of machinery.

>>>Drawing of GICL drum gear coupling:

1681897608728

>>>Drawing of GICL drum gear coupling:

Model	Tn(N.m)	[n](r/min)	d1,d2,dz			D	C	C1	C2	Kg.m2	Kg
				Y	Z1,J1
				L
GICL1	630	7100	16 18 19	42	-	125	20	-	-	0.009	5.9
			20 22 24	52	38			-	24
			25 28	62	44		10	-	19
			30 32 35 38	82	60		2.5	15	22
GICL2	1120	6300	25 28	62	44	144	10.5	-	29	0.02	9.7
			30 32 35 38	82	60			12.5	30
			40 42 45 48	112	84		2.5	13.5	28
GICL3	2240	5900	30 32 35 38	82	60	174	3	24.5	25	0.047	17.2
			40 42 45 48 50 55 56	112	84			17	28
			60	142	107				35
GICL4	3600	5400	32 35 38	82	60	196	14	37	32	0.091	24.9
			40 42 45 48 50 55 56	112	84				28
			60 63 65 70	142	107		3	17	35
GICL5	5000	5000	40 42 45 48 50 55 56	112	84	224	3	25	28	0.167	38
			60 63 65 70 71 75	142	107			20	35
			80	172	132			22	43
GICL6	7100	4800	48 50 55 56	112	84	241	6	35	35	0.267	48.2
			60 63 65 70 71 75	142	107			20	35
			80 85 90	172	132		4	22	43
GICL7	10000	4500	60 63 65 70 71 75	142	107	260	4	35	35	0.453	68.9
			80 85 90 95	172	132			22	43
			100	212	167				48
GICL8	14000	4000	65 70 71 75	142	107	282	5	35	35	0.646	83.3
			80 85 90 95	172	132			22	43
			100 110	212	167				48
GICL9	18000	3500	70 71 75	142	107	314	10	45	45	1.036	110
			80 85 90 95	172	132
			100 110 120 125	212	167		5	22	43
									49
GICL10	31500	3200	80 85 90 95	172	132	346	5	43	43	1.88	157
			100 110 120 125	212	167			22	49
			130 140	252	202			29	54
GICL11	40000	3000	100 110 120 125	212	167	380	6	29	49	3.28	217
			130 140 150	252	202				54
			160	302	242				64
GICL12	56000	2600	120 125	212	167	442	6	57	57	5.08	305
			130 140 150	252	202			29	55
			160 170 180	302	242				68
GICL13	80000	2300	140 150	252	202	482	7	54	57	10.06	419
			160 170 180	302	242			32	70
			190 200	352	282				80
GICL14	112000	2100	160 170 180	302	242	520	8	42	70	16.774	594
			190 200 220	352	282			32	80
GICL15	160000	1900	190 200 220	352	282	580	10	34	80	26.55	783
			140 150	410	330			38	-
GICL16	250000	1600	200 220	352	282	680	10	58	80	52.22	1134
			240 250 260	410	330			38	-
			280	470	380			38
GICL17	280000	1500	220	352	282	720	10	74	80	69	1305
			240 250 260	410	330
			280 300	470	380			39	-
GICL18	355000	1400	240 250 260	410	330	775	10	46	-	96.16	1626
			280 300 320	470	380			41	-
GICL19	450000	1300	260	410	330	815	10	67	-	115.6	1773
			280 300 320	470	380			41
			340	550	450
GICL20	500000	1200	280 300 320	470	380	855	13	44	-	167.41	2263
