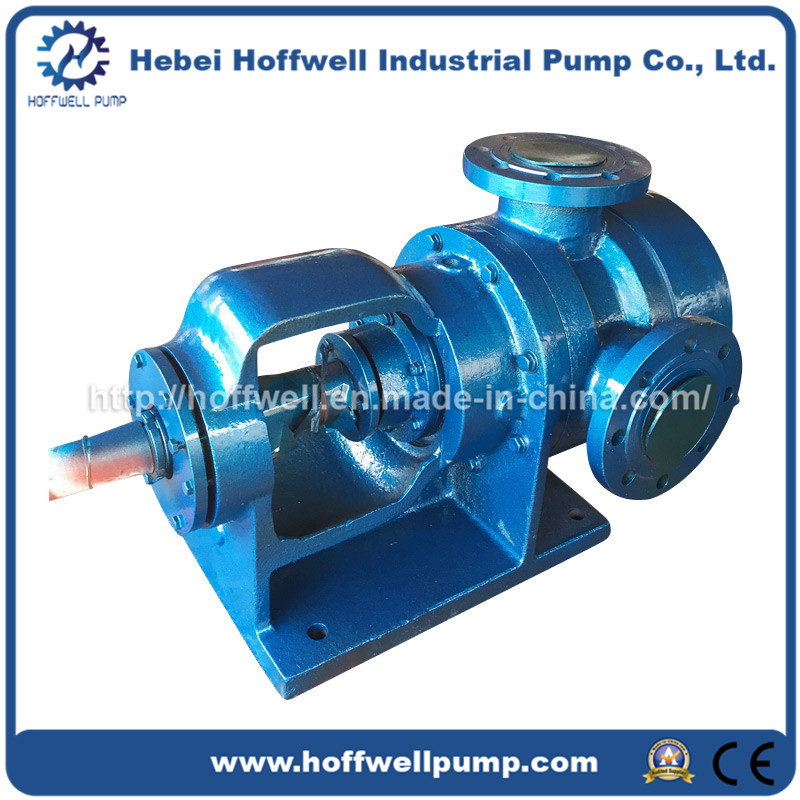

NYP Series Molasses Internal Gear Pump
>>>Brief introduction
NYP series internal gear pump is a kind of new positive displacement pump, and is designed according to the different fields requirements of petroleum, chemical insustry, paint, medicine, foodstuff and so on. It widely applies to a variety of mediums with different property and viscosity because of special structure and selected different pump's materials.
Proper medium temperature: -10. C-200. C
Proper medium viscosity: 1.0cst-300, 000cst
>>>Pump Structure
(1)working principle
Driving gear (outside rotor) with internal tooth drives the internal rotor and turns in same direction in the full closed pump body. The pump casting and crescent of the front cover separate the inlet from the outlet. When it turns, negative pressure formed at the suction port, the liquid inhaled and being taken to the outlet by rotor, then the liquid is expelled from the discharge port as the gears mesh. The transportation of the liquid finished
(2)Structure Feature
Component: Internal rotor, outside rotor, shaft, pump body, front cover, seal, bearing etc.
The seal of pump adopts packing seal or mechanical seal. When the delivered medium is high temperature, high viscosity or strong corrosion, packing seal should be adopted.
When the delivered medium is easy crystalline materials, we can design the heat preservation jacket in pump body and front cover in order to melt the medium with steam when working, the pump can be also fitted with the safety valve.

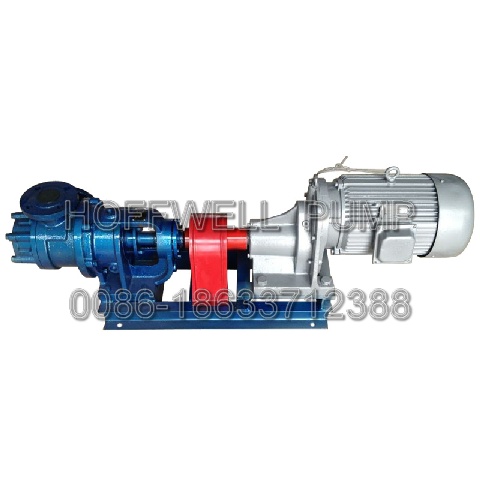

The pump set is composed of the pump, motor and base plate, the direction way is belt wheel driving or coupling driving.
The rotation direction is clockwise from motor end.
>>>Advantage
(1)steady delivery without pulsation, little vibration and low noise
(2)outstanding self-priming ability
(3)the pump can deliver the varied corrosion medium if the pump parts selected proper materials. In addition the working temperature can reach max 200. C
(4). The same rotary direction of internal rotor and outside rotor results in little wear and long operation life.
(5). The pump's flow can be changed through adjusting the speed.
(6). It's specially suited to deliver high viscosity medium.
>>>Model explanation
NYP means internal gear pump
52 means displacement L/100r
A means code of design improvement
>>>FAQ--- Frequently Asked Question
1. How to get our quotation in time, pls answer following questions:
A.What liquid do you transfer? Oil, Water, Food or Corrosive Chemical liquid, with solid particle or not, and so on~
B.What's the flow or capcity (m3/h, L/m)?
C.What's the discharge head (m, feet, Mpa, bar )
If you do not have any request, we will do as our normal standard.
D.Contact us to get the quotation:
2. OEM: Ok
3. MOQ: 1set
4. Package: Standar export Plywood Case or Styrofoam with Carton
5. Shipping ways: By sea, By air, By express
6. Lead time: 3-15days
7. Term of payment: 100% T/T, Aliexpress, L/C, Westunion
8. Why choose us: 20years experiences manufacturer
Good quality with competitive pirce
ISO2009:8001, CE certificate
Professional after-sales service
>>>Other Gear Pumps You May Like
NYP Series Molasses Internal Gear Pump
>>>Brief introduction
NYP series internal gear pump is a kind of new positive displacement pump, and is designed according to the different fields requirements of petroleum, chemical insustry, paint, medicine, foodstuff and so on. It widely applies to a variety of mediums with different property and viscosity because of special structure and selected different pump's materials.
Proper medium temperature: -10. C-200. C
Proper medium viscosity: 1.0cst-300, 000cst
>>>Pump Structure
(1)working principle
Driving gear (outside rotor) with internal tooth drives the internal rotor and turns in same direction in the full closed pump body. The pump casting and crescent of the front cover separate the inlet from the outlet. When it turns, negative pressure formed at the suction port, the liquid inhaled and being taken to the outlet by rotor, then the liquid is expelled from the discharge port as the gears mesh. The transportation of the liquid finished
(2)Structure Feature
Component: Internal rotor, outside rotor, shaft, pump body, front cover, seal, bearing etc.
The seal of pump adopts packing seal or mechanical seal. When the delivered medium is high temperature, high viscosity or strong corrosion, packing seal should be adopted.
When the delivered medium is easy crystalline materials, we can design the heat preservation jacket in pump body and front cover in order to melt the medium with steam when working, the pump can be also fitted with the safety valve.
The pump set is composed of the pump, motor and base plate, the direction way is belt wheel driving or coupling driving.
The rotation direction is clockwise from motor end.
>>>Advantage
(1)steady delivery without pulsation, little vibration and low noise
(2)outstanding self-priming ability
(3)the pump can deliver the varied corrosion medium if the pump parts selected proper materials. In addition the working temperature can reach max 200. C
(4). The same rotary direction of internal rotor and outside rotor results in little wear and long operation life.
(5). The pump's flow can be changed through adjusting the speed.
(6). It's specially suited to deliver high viscosity medium.
>>>Model explanation
NYP means internal gear pump
52 means displacement L/100r
A means code of design improvement
>>>FAQ--- Frequently Asked Question
1. How to get our quotation in time, pls answer following questions:
A.What liquid do you transfer? Oil, Water, Food or Corrosive Chemical liquid, with solid particle or not, and so on~
B.What's the flow or capcity (m3/h, L/m)?
C.What's the discharge head (m, feet, Mpa, bar )
If you do not have any request, we will do as our normal standard.
D.Contact us to get the quotation:
2. OEM: Ok
3. MOQ: 1set
4. Package: Standar export Plywood Case or Styrofoam with Carton
5. Shipping ways: By sea, By air, By express
6. Lead time: 3-15days
7. Term of payment: 100% T/T, Aliexpress, L/C, Westunion
8. Why choose us: 20years experiences manufacturer
Good quality with competitive pirce
ISO2009:8001, CE certificate
Professional after-sales service
>>>Other Gear Pumps You May Like
>>>NYP internal gear pump slection table
Model | Path mm | Displacement theory L/100rev | Viscosity cSt | Speed r/min | Pressure(MPa) | Connections | |||
0.4 | 0.6 | 0.8 | 1.0 | ||||||
Shaft power(kw)Capacity(L/min) | |||||||||
NYP0.78 | 15 | 0.78 | 20 | 1390 | 0.17/9.3 | 0.23/9.0 | 0.28/8.8 | 0.32/8.6 | G1/2" |
60 | 1390 | 0.18/9.5 | 0.24/9.2 | 0.28/9.0 | 0.33/8.9 | ||||
200 | 1390 | 0.31/10.4 | 0.35/10.2 | 0.39/10.0 | 0.43/9.9 | ||||
600 | 1390 | 0.39/10.4 | 0.44/10.3 | 0.48/10.3 | 0.52/10.2 | ||||
2000 | 910 | 0.23/6.8 | 0.27/6.8 | 0.30/6.8 | 0.33/6.7 | ||||
6000 | 720 | 0.24/5.4 | 0.31/6.1 | 0.30/6.8 | 0.40/6.8 | ||||
NYP2.3 | 25 | 2.3 | 20 | 1400 | 0.38/28.4 | 0.49/27.5 | G1" | ||
60 | 1400 | 0.59/29.2 | 0.65/28.8 | ||||||
200 | 1400 | 0.61/30.0 | 0.72/29.6 | ||||||
600 | 1400 | 0.92/31.9 | 0.96/31.7 | ||||||
2000 | 910 | 0.61/19.9 | 0.68/19.7 | ||||||
6000 | 720 | 0.77/16.32 | 0.83/16.2 | ||||||
NYP3.6 | 40 | 3.6 | 20 | 1450 | 0.69/46.7 | 0.94/45.9 | 1.18/45 | 1.44/43.4 | Flange |
60 | 1450 | 0.81/47.5 | 1.09/46.7 | 1.37/45.9 | 1.57/44.7 | ||||
200 | 1450 | 1.06/49.7 | 1.31/49.2 | 1.56/48.8 | 1.79/47.3 | ||||
600 | 1450 | 1.45/49.9 | 1.61/49.6 | 1.77/49.3 | 1.93/49 | ||||
2000 | 960 | 1.28/34.3 | 1.41/33.8 | 1.54/33.7 | 1.65/33.6 | ||||
6000 | 640 | 1.08/23.0 | 1.18/22.9 | 1.28/22.9 | 1.37/22.8 | ||||
20000 | 583 | 1.22/20.5 | 1.24/20.4 | 1.25/20.4 | 1.38/20.3 | ||||
60000 | 455 | 0.84/16.3 | 0.91/16.2 | 0.98/16.1 | 1.01/16 | ||||
NYP7.0 NYP7.0A (The original Model : NYP3 NYP3A) | 40 | 7.0 | 20 | 1450 | 1.36/98.1 | 1.8/96 | 2.0/94.7 | 2.4/93 | Thread |
60 | 1450 | 1.45/99 | 1.9/97 | 2.2/96.4 | 2.6/95 | ||||
200 | 1450 | 1.62/99.8 | 2.0/98 | 2.3/97.5 | 2.7/97 | ||||
600 | 960 | 1.4/62 | 1.6/65 | 1.8/44 | 2.0/64 | ||||
2000 | 960 | 1.8/67 | 2.0/66 | 2.3/65 | 2.6/65 | ||||
6000 | 640 | 1.5/44.5 | 1.7/44 | 1.8/44 | 2.0/44 | ||||
20000 | 583 | 1.6/40.5 | 1.9/40 | 2.1/40 | 2.2/40 | ||||
60000 | 455 | 1.46/31.5 | 1.8/31 | 1.9/31 | 2.0/31 | ||||
NYP24 | 50 | 24 | 20 | 720 | 1.8/165 | 2.3/161 | 2.8/158 | 3.4/155 | Flange |
60 | 720 | 2.0/166 | 2.6/164 | 3.1/162 | 3.7/158 | ||||
200 | 610 | 1.9/143 | 2.5/141 | 3.0/139 | 3.5/136 | ||||
600 | 541 | 2.1/127 | 2.6/125 | 3.0/124 | 3.5/122 | ||||
2000 | 475 | 2.2/112 | 2.6/111 | 2.9/110 | 3.4/109 | ||||
6000 | 357 | 2.0/85 | 2.3/84 | 2.6/83 | 2.9/83 | ||||
20000 | 303 | 1.9/72 | 2.2/72 | 2.4/72 | 2.6/71 | ||||
60000 | 228 | 1.6/54 | 1.8/54 | 2.0/54 | 2.3/54 | ||||
NYP52 NYP52A (The original Model : NYP10 NYP10A) | 50 | 52 | 20 | 720 | 4.3/362 | 5.8/355 | 6.9/348 | 8.1/340 | Thread |
60 | 720 | 4.7/364 | 6.2/358 | 7.3/352 | 7.5/346 | ||||
200 | 610 | 4.6/309 | 5.9/304 | 6.9/300 | 8.0/294 | ||||
600 | 541 | 4.9/275 | 6.0/271 | 6.8/268 | 7.8/264 | ||||
2000 | 475 | 5.0/243 | 5.9/238 | 6.6/237 | 7.6/235 | ||||
6000 | 357 | 4.1/184 | 4.9/182 | 5.3/181 | 6.2/180 | ||||
20000 | 303 | 3.8/157 | 4.6/156 | 5.1/155 | 5.6/155 | ||||
60000 | 228 | 3.1/119 | 3.7/118 | 4.0/118 | 4.5/118 | ||||
NYP80 | 80 | 80 | 20 | 615 | 5.2/471 | 6.9/461 | 8.5/451 | 10.0/433 | Flange |
60 | 615 | 5.5/474 | 7.2/465 | 8.8/457 | 10.5/448 | ||||
200 | 544 | 5.7/421 | 7.2/414 | 8.6/408 | 10.1/401 | ||||
600 | 479 | 6.0/372 | 7.3/367 | 8.5/362 | 9.8/356 | ||||
2000 | 417 | 6.5/326 | 7.7/322 | 8.9/319 | 10.1/315 | ||||
6000 | 305 | 5.6/239 | 6.6/237 | 7.5/326 | 8.4/233 | ||||
20000 | 228 | 5.5/180 | 6.4/179 | 6.9/178 | 7.7/177 | ||||
60000 | 188 | 5.5/149 | 6.1/149 | 6.7/149 | 7.2/148 | ||||
NYP111 NYP111A (The original Model : NYP30 NYP30A) | 80 | 111.4 | 20 | 615 | 6.7/660 | 9.2/647 | 11.2/634 | 13.6/622 | Flange |
60 | 615 | 6.9/664 | 9.4/652 | 11.5/642 | 13.9/631 | ||||
200 | 544 | 7.1/589 | 9.3/580 | 11.0/573 | 13.2/563 | ||||
600 | 479 | 7.3/521 | 9.5/514 | 11.1/508 | 13.1/502 | ||||
2000 | 417 | 7.7/455 | 9.7/450 | 11.0/447 | 12.7/442 | ||||
6000 | 305 | 6.9/335 | 8.4/332 | 9.4/331 | 10.6/328 | ||||
20000 | 228 | 6.3/251 | 7.5/250 | 8.2/249 | 9.2/248 | ||||
60000 | 188 | 6.2/209 | 7.1/208 | 7.6/208 | 8.5/207 | ||||
NYP160 | 100 | 160 | 20 | 600 | 8.9/930 | 12.1/916 | 15.3/902 | 17.5/888 | Flange |
60 | 600 | 9.4/935 | 12.6/922 | 15.8/910 | 19.0/898 | ||||
200 | 550 | 12.3/866 | 15.3/859 | 18.3/852 | 21.3/845 | ||||
600 | 480 | 10.2/754 | 12.8/747 | 15.4/740 | 18.0/737 | ||||
2000 | 355 | 9.1/560 | 11.1/556 | 13/552 | 15.1/548 | ||||
6000 | 319 | 10.0/505 | 11.7/502 | 13.5/500 | 15.2/497 | ||||
NYP220 | 125 | 220 | 20 | 430 | 8.8/902 | 11.9/880 | 15.0/858 | 18.0/836 | Flange |
60 | 430 | 9.0/909 | 12.0/890 | 15.0/871 | 18.0/852 | ||||
200 | 355 | 8.5/753 | 11.1/739 | 13.7/726 | 16.3/713 | ||||
600 | 320 | 9.4/682 | 11.8/671 | 14.1/660 | 16.5/649 | ||||
2000 | 254 | 9.1/544 | 11.0/537 | 13.0/530 | 15.1/523 | ||||
6000 | 244 | 10.1/483 | 11.9/478 | 13.6/473 | 15.4/468 | ||||
20000 | 160 | 9.1/347 | 10.5/345 | 11.9/343 | 13.3/341 | ||||
60000 | 117 | 8.4/256 | 9.4/255 | 10.4/254 | 11.4/253 | ||||
NYP320 | 125 | 320 | 20 | 430 | 13.0/1306 | 18.0/1270 | 22.0/1235 | 26.0/1200 | Flange |
60 | 430 | 13.0/1316 | 18.5/1285 | 22.0/1255 | 26.5/1225 | ||||
200 | 355 | 11.8/1091 | 15.5/1068 | 19.1/1046 | 22.8/1024 | ||||
600 | 320 | 13.2/987 | 16.5/968 | 19.7/950 | 22.9/932 | ||||
2000 | 284 | 14.2/881 | 17.4/867 | 20.6/854 | 23.8/841 | ||||
6000 | 222 | 13.7/693 | 16.2/684 | 18.7/675 | 21.2/666 | ||||
20000 | 168 | 13.2/529 | 15.3/525 | 17.3/522 | 19.4/519 | ||||
60000 | 125 | 12.0/397 | 13.7/396 | 15.3/395 | 16.9/394 | ||||
NYP650 | 150 | 650 | 20 | 315 | 19.0/1921 | 26.0/1857 | 33.0/1794 | Flange | |
60 | 315 | 20.0/1940 | 26.4/1886 | 33.2/1832 | |||||
200 | 284 | 17.9/1756 | 24.0/1711 | 30.4/1666 | |||||
600 | 253 | 17.6/1572 | 22.7/1534 | 28.9/1500 | |||||
2000 | 196 | 15.7/1225 | 20.6/1201 | 24.5/1176 | |||||
6000 | 160 | 16.0/1008 | 19.8/993 | 22.3/978 | |||||
20000 | 117 | 13.6/745 | 16.5/738 | 19.2/731 | |||||
60000 | 100 | 15.0/645 | 17.2/643 | 19.5/640 | |||||
NYP727 ( The original Model : NYP50) | 150 | 727 | 20 | 315 | 21.5/2135 | 29.4/2058 | 37.3/1980 | Flange | |
60 | 315 | 22.4/2157 | 29.8/2090 | 37.3/2026 | |||||
200 | 280 | 19.6/1928 | 26.7/1874 | 33.5/1820 | |||||
600 | 245 | 19.6/1696 | 25.1/1652 | 31.2/1611 | |||||
2000 | 200 | 18.7/1394 | 23.3/1363 | 28.5/1334 | |||||
6000 | 170 | 19.2/1195 | 23.3/1175 | 27.9/1155 | |||||
20000 | 125 | 17.0/888 | 20.1/878 | 23.3/868 | |||||
60000 | 100 | 16.8/720 | 19.5/717 | 22.3/713 | |||||
NYP1670 | 200 | 1670 | 20 | 250 | 38.0/3852 | 52.0/3690 | 66.0/3529 | Flange | |
60 | 250 | 40.0/3900 | 54.0/3763 | 68.0/3626 | |||||
200 | 225 | 37.5/3535 | 50.0/3424 | 62.5/3313 | |||||
600 | 195 | 37.0/3079 | 48.0/2990 | 58.6/2900 | |||||
2000 | 160 | 35.0/2547 | 44.0/2485 | 53.0/2422 | |||||
6000 | 135 | 34.6/2177 | 42.0/2138 | 50.0/2100 | |||||
20000 | 112 | 35.0/1830 | 41.5/1810 | 48.0/1790 | |||||
60000 | 85 | 36.0/1405 | 35.7/1400 | 40.6/1392 |
>>>NYP internal gear pump slection table
Model | Path mm | Displacement theory L/100rev | Viscosity cSt | Speed r/min | Pressure(MPa) | Connections | |||
0.4 | 0.6 | 0.8 | 1.0 | ||||||
Shaft power(kw)Capacity(L/min) | |||||||||
NYP0.78 | 15 | 0.78 | 20 | 1390 | 0.17/9.3 | 0.23/9.0 | 0.28/8.8 | 0.32/8.6 | G1/2" |
60 | 1390 | 0.18/9.5 | 0.24/9.2 | 0.28/9.0 | 0.33/8.9 | ||||
200 | 1390 | 0.31/10.4 | 0.35/10.2 | 0.39/10.0 | 0.43/9.9 | ||||
600 | 1390 | 0.39/10.4 | 0.44/10.3 | 0.48/10.3 | 0.52/10.2 | ||||
2000 | 910 | 0.23/6.8 | 0.27/6.8 | 0.30/6.8 | 0.33/6.7 | ||||
6000 | 720 | 0.24/5.4 | 0.31/6.1 | 0.30/6.8 | 0.40/6.8 | ||||
NYP2.3 | 25 | 2.3 | 20 | 1400 | 0.38/28.4 | 0.49/27.5 | G1" | ||
60 | 1400 | 0.59/29.2 | 0.65/28.8 | ||||||
200 | 1400 | 0.61/30.0 | 0.72/29.6 | ||||||
600 | 1400 | 0.92/31.9 | 0.96/31.7 | ||||||
2000 | 910 | 0.61/19.9 | 0.68/19.7 | ||||||
6000 | 720 | 0.77/16.32 | 0.83/16.2 | ||||||
NYP3.6 | 40 | 3.6 | 20 | 1450 | 0.69/46.7 | 0.94/45.9 | 1.18/45 | 1.44/43.4 | Flange |
60 | 1450 | 0.81/47.5 | 1.09/46.7 | 1.37/45.9 | 1.57/44.7 | ||||
200 | 1450 | 1.06/49.7 | 1.31/49.2 | 1.56/48.8 | 1.79/47.3 | ||||
600 | 1450 | 1.45/49.9 | 1.61/49.6 | 1.77/49.3 | 1.93/49 | ||||
2000 | 960 | 1.28/34.3 | 1.41/33.8 | 1.54/33.7 | 1.65/33.6 | ||||
6000 | 640 | 1.08/23.0 | 1.18/22.9 | 1.28/22.9 | 1.37/22.8 | ||||
20000 | 583 | 1.22/20.5 | 1.24/20.4 | 1.25/20.4 | 1.38/20.3 | ||||
60000 | 455 | 0.84/16.3 | 0.91/16.2 | 0.98/16.1 | 1.01/16 | ||||
NYP7.0 NYP7.0A (The original Model : NYP3 NYP3A) | 40 | 7.0 | 20 | 1450 | 1.36/98.1 | 1.8/96 | 2.0/94.7 | 2.4/93 | Thread |
60 | 1450 | 1.45/99 | 1.9/97 | 2.2/96.4 | 2.6/95 | ||||
200 | 1450 | 1.62/99.8 | 2.0/98 | 2.3/97.5 | 2.7/97 | ||||
600 | 960 | 1.4/62 | 1.6/65 | 1.8/44 | 2.0/64 | ||||
2000 | 960 | 1.8/67 | 2.0/66 | 2.3/65 | 2.6/65 | ||||
6000 | 640 | 1.5/44.5 | 1.7/44 | 1.8/44 | 2.0/44 | ||||
20000 | 583 | 1.6/40.5 | 1.9/40 | 2.1/40 | 2.2/40 | ||||
60000 | 455 | 1.46/31.5 | 1.8/31 | 1.9/31 | 2.0/31 | ||||
NYP24 | 50 | 24 | 20 | 720 | 1.8/165 | 2.3/161 | 2.8/158 | 3.4/155 | Flange |
60 | 720 | 2.0/166 | 2.6/164 | 3.1/162 | 3.7/158 | ||||
200 | 610 | 1.9/143 | 2.5/141 | 3.0/139 | 3.5/136 | ||||
600 | 541 | 2.1/127 | 2.6/125 | 3.0/124 | 3.5/122 | ||||
2000 | 475 | 2.2/112 | 2.6/111 | 2.9/110 | 3.4/109 | ||||
6000 | 357 | 2.0/85 | 2.3/84 | 2.6/83 | 2.9/83 | ||||
20000 | 303 | 1.9/72 | 2.2/72 | 2.4/72 | 2.6/71 | ||||
60000 | 228 | 1.6/54 | 1.8/54 | 2.0/54 | 2.3/54 | ||||
NYP52 NYP52A (The original Model : NYP10 NYP10A) | 50 | 52 | 20 | 720 | 4.3/362 | 5.8/355 | 6.9/348 | 8.1/340 | Thread |
60 | 720 | 4.7/364 | 6.2/358 | 7.3/352 | 7.5/346 | ||||
200 | 610 | 4.6/309 | 5.9/304 | 6.9/300 | 8.0/294 | ||||
600 | 541 | 4.9/275 | 6.0/271 | 6.8/268 | 7.8/264 | ||||
2000 | 475 | 5.0/243 | 5.9/238 | 6.6/237 | 7.6/235 | ||||
6000 | 357 | 4.1/184 | 4.9/182 | 5.3/181 | 6.2/180 | ||||
20000 | 303 | 3.8/157 | 4.6/156 | 5.1/155 | 5.6/155 | ||||
60000 | 228 | 3.1/119 | 3.7/118 | 4.0/118 | 4.5/118 | ||||
NYP80 | 80 | 80 | 20 | 615 | 5.2/471 | 6.9/461 | 8.5/451 | 10.0/433 | Flange |
60 | 615 | 5.5/474 | 7.2/465 | 8.8/457 | 10.5/448 | ||||
200 | 544 | 5.7/421 | 7.2/414 | 8.6/408 | 10.1/401 | ||||
600 | 479 | 6.0/372 | 7.3/367 | 8.5/362 | 9.8/356 | ||||
2000 | 417 | 6.5/326 | 7.7/322 | 8.9/319 | 10.1/315 | ||||
6000 | 305 | 5.6/239 | 6.6/237 | 7.5/326 | 8.4/233 | ||||
20000 | 228 | 5.5/180 | 6.4/179 | 6.9/178 | 7.7/177 | ||||
60000 | 188 | 5.5/149 | 6.1/149 | 6.7/149 | 7.2/148 | ||||
NYP111 NYP111A (The original Model : NYP30 NYP30A) | 80 | 111.4 | 20 | 615 | 6.7/660 | 9.2/647 | 11.2/634 | 13.6/622 | Flange |
60 | 615 | 6.9/664 | 9.4/652 | 11.5/642 | 13.9/631 | ||||
200 | 544 | 7.1/589 | 9.3/580 | 11.0/573 | 13.2/563 | ||||
600 | 479 | 7.3/521 | 9.5/514 | 11.1/508 | 13.1/502 | ||||
2000 | 417 | 7.7/455 | 9.7/450 | 11.0/447 | 12.7/442 | ||||
6000 | 305 | 6.9/335 | 8.4/332 | 9.4/331 | 10.6/328 | ||||
20000 | 228 | 6.3/251 | 7.5/250 | 8.2/249 | 9.2/248 | ||||
60000 | 188 | 6.2/209 | 7.1/208 | 7.6/208 | 8.5/207 | ||||
NYP160 | 100 | 160 | 20 | 600 | 8.9/930 | 12.1/916 | 15.3/902 | 17.5/888 | Flange |
60 | 600 | 9.4/935 | 12.6/922 | 15.8/910 | 19.0/898 | ||||
200 | 550 | 12.3/866 | 15.3/859 | 18.3/852 | 21.3/845 | ||||
600 | 480 | 10.2/754 | 12.8/747 | 15.4/740 | 18.0/737 | ||||
2000 | 355 | 9.1/560 | 11.1/556 | 13/552 | 15.1/548 | ||||
6000 | 319 | 10.0/505 | 11.7/502 | 13.5/500 | 15.2/497 | ||||
NYP220 | 125 | 220 | 20 | 430 | 8.8/902 | 11.9/880 | 15.0/858 | 18.0/836 | Flange |
60 | 430 | 9.0/909 | 12.0/890 | 15.0/871 | 18.0/852 | ||||
200 | 355 | 8.5/753 | 11.1/739 | 13.7/726 | 16.3/713 | ||||
600 | 320 | 9.4/682 | 11.8/671 | 14.1/660 | 16.5/649 | ||||
2000 | 254 | 9.1/544 | 11.0/537 | 13.0/530 | 15.1/523 | ||||
6000 | 244 | 10.1/483 | 11.9/478 | 13.6/473 | 15.4/468 | ||||
20000 | 160 | 9.1/347 | 10.5/345 | 11.9/343 | 13.3/341 | ||||
60000 | 117 | 8.4/256 | 9.4/255 | 10.4/254 | 11.4/253 | ||||
NYP320 | 125 | 320 | 20 | 430 | 13.0/1306 | 18.0/1270 | 22.0/1235 | 26.0/1200 | Flange |
60 | 430 | 13.0/1316 | 18.5/1285 | 22.0/1255 | 26.5/1225 | ||||
200 | 355 | 11.8/1091 | 15.5/1068 | 19.1/1046 | 22.8/1024 | ||||
600 | 320 | 13.2/987 | 16.5/968 | 19.7/950 | 22.9/932 | ||||
2000 | 284 | 14.2/881 | 17.4/867 | 20.6/854 | 23.8/841 | ||||
6000 | 222 | 13.7/693 | 16.2/684 | 18.7/675 | 21.2/666 | ||||
20000 | 168 | 13.2/529 | 15.3/525 | 17.3/522 | 19.4/519 | ||||
60000 | 125 | 12.0/397 | 13.7/396 | 15.3/395 | 16.9/394 | ||||
NYP650 | 150 | 650 | 20 | 315 | 19.0/1921 | 26.0/1857 | 33.0/1794 | Flange | |
60 | 315 | 20.0/1940 | 26.4/1886 | 33.2/1832 | |||||
200 | 284 | 17.9/1756 | 24.0/1711 | 30.4/1666 | |||||
600 | 253 | 17.6/1572 | 22.7/1534 | 28.9/1500 | |||||
2000 | 196 | 15.7/1225 | 20.6/1201 | 24.5/1176 | |||||
6000 | 160 | 16.0/1008 | 19.8/993 | 22.3/978 | |||||
20000 | 117 | 13.6/745 | 16.5/738 | 19.2/731 | |||||
60000 | 100 | 15.0/645 | 17.2/643 | 19.5/640 | |||||
NYP727 ( The original Model : NYP50) | 150 | 727 | 20 | 315 | 21.5/2135 | 29.4/2058 | 37.3/1980 | Flange | |
60 | 315 | 22.4/2157 | 29.8/2090 | 37.3/2026 | |||||
200 | 280 | 19.6/1928 | 26.7/1874 | 33.5/1820 | |||||
600 | 245 | 19.6/1696 | 25.1/1652 | 31.2/1611 | |||||
2000 | 200 | 18.7/1394 | 23.3/1363 | 28.5/1334 | |||||
6000 | 170 | 19.2/1195 | 23.3/1175 | 27.9/1155 | |||||
20000 | 125 | 17.0/888 | 20.1/878 | 23.3/868 | |||||
60000 | 100 | 16.8/720 | 19.5/717 | 22.3/713 | |||||
NYP1670 | 200 | 1670 | 20 | 250 | 38.0/3852 | 52.0/3690 | 66.0/3529 | Flange | |
60 | 250 | 40.0/3900 | 54.0/3763 | 68.0/3626 | |||||
200 | 225 | 37.5/3535 | 50.0/3424 | 62.5/3313 | |||||
600 | 195 | 37.0/3079 | 48.0/2990 | 58.6/2900 | |||||
2000 | 160 | 35.0/2547 | 44.0/2485 | 53.0/2422 | |||||
6000 | 135 | 34.6/2177 | 42.0/2138 | 50.0/2100 | |||||
20000 | 112 | 35.0/1830 | 41.5/1810 | 48.0/1790 | |||||
60000 | 85 | 36.0/1405 | 35.7/1400 | 40.6/1392 |
All the pump material will do material and quality test before producing. All the casing, gear and shaft are all produced by CNC machine, to ensure it precision. Each pump will do hydrauic test and performance test before leave factory.
We Believe HOFFWELL pump is your best Choice!
All the pump material will do material and quality test before producing. All the casing, gear and shaft are all produced by CNC machine, to ensure it precision. Each pump will do hydrauic test and performance test before leave factory.
We Believe HOFFWELL pump is your best Choice!
content is empty!
