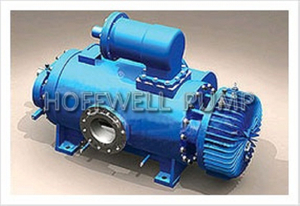

W. V Series High Quality Twin Screw Pump

Availability:

Quantity:



Inquire Add to Basket

Product Description

The advantage of the twin-screw pump
1. Transporting the liquid smoothly without any disturbing and pulsation, no impulse, with less vibration and low noise.
2. It has strong selr-suction performance, when multiphase mixed transporting, the gas content can not over 80%, and the san content can not over 500G/M3.
3. Outboard bearing structure which qdopt independently lubricate, so aoo kinds of nonlubricate medium can be transported.
4. It adopts synchronous gear drinving, between the two totors there is no touch at all, ecen though idling for short term is no problem.
5. The pump body has heating jacket, so it can transport all kinds of clean or low viscosity or high viscosity mediuum which contain the particulate solids. (the diameter of the particulate is usually less than 0.12-0.2mm)
6. If selecting the material correctly, some corrosive medium can be transported.
7. Double-suction structure, and there is no axial force on the rotor.
8. The shaft ends adopt mechanical seal or corrugated pipe mechanical seal, it has the characteristic of long-life, less leak, wide scope of application.

Performance scope
1. The highest pressure 4.0MPa
2. Capacity range 1~1000m3/h
3. Temperature range -20~120 Deg C.
4. Thee ciscosity of the medium 1~3000mm2/s, when lower the speed of the rotation it can be up to 106mm2/s

FAQ--- Frequently Asked Question
1. How to get our quotation in time, please answer following questions:
A.What liquid do you transfer? Oil, Water, Food or Corrosive Chemical liquid, with solid particle or not, and so on~
B. What's the flow or capcity (m3/h, L/m)?
C.What's the discharge head (m, feet, Mpa, bar )
If you do not have any request, we will do as our normal standard.
D. Contact us to get the quotation:
2. OEM: Ok
3. MOQ: 1set
4. Package: Standar export Plywood Case or Styrofoam with Carton
5. Shipping ways: By sea, By air, By express
6. Lead time: 3-15days
7. Term of payment: 100% T/T, Aliexpress, L/C, Westunion
8. Why choose us: more than 20 years experiences manufacturer
Good quality with competitive pirce
ISO2000, CE certificate, CCS certificate
Professional after-sales service

Model	Pressure MPa	1450r/nin								950r/min				720r/min
		30cSt		75cSt		150cSt		300cSt		450cSt		750cSt		1500cSt		2500cSt
		m 3 /h	kw	m 3 /h	kw	m 3 /h	kw	m 3 /h	kw	m 3 /h	kw	m 3 /h	kw	m 3 /h	kw	m 3 /h	kw
2.5-15	0.6	2.4	1.5	3	2.2	3.2	2.2	3.3	2.2	1.8	1.5	1.8	2.2	1.3	2.2	1.3	2.2
2.5-15	1.0	1.7	2.2	2.6	2.2	2.9	3	3.1	3	1.7	2.2	1.7	2.2	1.2	2.2	1.2	2.2
2.5-20	0.4	3.9	1.5	4.3	1.5	4.4	2.2	4.5	2.2	2.6	1.5	2.6	2.2	1.9	2.2	1.9	2.2
2.5-20	0.6	3.4	1.5	4	2.2	4.2	2.2	4.3	2.2	2.5	2.2	2.5	2.2	1.8	1.5	1.8	2.2
2.8-18	0.6	4.3	2.2	4.8	2.2	4.9	3	5	3	2.9	2.2	2.9	3	2.1	3	2.1	3
2.8-18	1.0	3.7	3	4.4	4	4.7	4	4.8	4	2.7	3	2.7	3	2	3	2	4
2.8-24	0.4	6.3	2.2	6.6	2.2	6.7	3	6.8	3	4	2.2	4	3	2.9	2.2	2.9	3
2.8-24	0.6	5.9	2.2	6.4	4	6.5	4	6.6	4	3.8	3	3.8	3	2.7	3	2.7	3
3.1-22	0.6	7.7	3	8.2	4	8.3	4	8.4	4	5	3	5	4	3.7	3	3.7	4
3.1-22	1.0	7	4	7.8	5.5	8	5.5	8.1	5.5	4.8	4	4.8	5.5	3.5	4	3.5	5.5
3.1-30	0.4	11.1	3	11.4	3	11.5	4	11.6	5.5	6.9	3	6.9	4	5.1	3	5.1	4
3.1-30	0.6	10.6	4	11.1	5.5	11.3	5.5	11.4	5.5	6.7	4	6.7	5.5	4.9	4	4.9	5.5
3.2-18	1.6	-	-	4.8	7.5	5.8	7.5	6.3	7.5	2.4	5.5	2.4	5.5	0.9	4.0	0.9	5.5
	2.0	-	-	4.2	7.5	5.5	7.5	6.1	11	2.3	7.5	2.3	7.5	0.9	4.0	0.9	5.5
	2.5	-	-	3.4	11	5.0	11	5.8	11	2.1	7.5	2.1	7.5	0.8	5.5	0.8	5.5
3.2-24	1.0	5.5	5.5	7.6	7.5	8.4	11	8.7	11	4.6	5.5	4.6	5.5	2.7	5.5	2.7	5.5
	1.25	4.6	7.5	7.2	11	8.2	11	8.5	11	4.5	5.5	4.5	7.5	2.6	5.5	2.6	7.5
	1.6	3.4	7.5	6.7	11	7.8	11	8.3	11	4.3	7.5	4.3	7.5	2.5	5.5	2.5	7.5
3.2-30	0.6	9.7	5.5	11	5.5	11.5	5.5	11.7	7.5	6.8	5.5	6.8	5.5	4.3	5.5	4.3	5.5
3.2-30	1.0	8.0	7.5	10.2	7.5	10.9	7.5	11.2	7.5	6.5	5.5	6.5	5.5	4.3	5.5	4.3	5.5
3.2-44	0.4	16.4	5.5	17.5	7.5	17.9	7.5	18.1	7.5	11.2	4.0	11.3	5.5	8.0	4.0	8.0	4.0
3.2-44	0.6	15.2	7.5	17	7.5	17.4	7.5	17.6	7.5	10.9	5.5	11	5.5	7.8	5.5	7.8	5.5
3.4-24	1.6	-	-	7.4	11	9	11	9.8	11	5.7	7.5	5.7	7.5	4.3	7.5	4.3	11
	2.0	-	-	6.5	11	8.5	11	9.5	15	5.5	11	5.5	11	4.1	7.5	4.1	11
	2.5	-	-	5.3	15	7.8	15	9.1	15	5.1	11	5.1	11	3.9	11	3.9	11
3.4-30	1.0	8.3	7.5	11.4	7.5	12.4	11	12.9	11	7.6	7.5	7.6	7.5	5.6	7.5	5.6	7.5
	1.25	6.9	11	10.7	11	12.1	11	12.6	11	7.4	7.5	7.4	11	5.5	7.5	5.5	11
	1.6	5	11	9.9	11	11.5	11	12.3	15	7.1	11	7.1	11	5.3	7.5	5.3	11
3.4-40	0.6	14.8	5.5	16.8	7.5	17.5	7.5	17.8	11	10.6	7.5	10.6	7.5	7.8	7.5	7.8	7.5
3.4-40	1.0	12.2	11	15.5	11	16.6	11	17.2	11	10	7.5	10	7.5	7.4	7.5	7.4	7.5
3.4-56	0.4	21.8	5.5	23.2	7.5	23.7	7.5	24	11	14.3	5.5	14.4	7.5	10.5	5.5	10.5	7.5
3.4-56	0.6	20.2	7.5	22.5	11	23.1	11	23.4	11	13.8	7.5	13.9	7.5	10.1	7.5	10.1	7.5
4.0-26	1.6			12.4	15	14.6	15	15.7	18.5	9.3	11	9.3	15	7	11	7	15
	2.0			11.2	15	13.9	18.5	15.3	22	9	15	9	15	6.8	15	6.8	15
	2.5			9.6	18.5	13.1	22	14.8	22	8.6	15	8.6	15	6.6	15	6.6	15
4.0-32	1.0	13.9	11	18.2	15	19.6	15	20.3	15	12.2	11	12.2	15	9.1	11	9.1	11
	1.25	12	15	17.3	15	19.1	15	20	18.5	11.9	11	11.9	15	8.9	11	8.9	15
	1.6			16.1	18.5	18.4	18.5	19.5	22	11.5	15	11.5	15	8.6	11	8.6	15
4.0-44	0.6	24.6	11	27.4	11	28.3	11	28.8	15	17.3	11	17.3	11	12.8	11	12.8	11
4.0-44	1.0	21.1	15	25.7	15	27.2	15	27.9	18.5	16.6	11	16.6	15	12.3	11	12.3	15
4.0-64	0.4	37.2	11	39.1	11	39.8	11	40.1	15	24.1	11	24.2	11	17.8	11	17.8	11
4.0-64	0.6	35	11	38	15	38.9	15	39.4	18.5	23.5	11	23.7	11	17.3	11	17.3	11
4.5-30	1.6	17.4	18.5	22.3	22	24	22	24.8	30	14.9	18.5	15	18.5	11.1	18.5	11.2	18.5
	2.0	15.1	22	21.3	30	23.4	30	24.4	30	14.5	22	14.6	22	10.9	18.5	11	22
	2.5	12.3	30	20	30	22.6	30	23.9	30	14.2	22	14.3	22	10.6	18.5	10.6	22
4.5-40	1.0	29.1	18.5	32.4	18.5	33.5	22	34	22	20.5	18.5	20.6	18.5	15.3	15	15.3	18.5
	1.25	27.5	18.5	31.6	22	33	30	33.7	30	20.2	18.5	20.3	22	15	18.5	15.1	22
	1.6	25.3	30	30.6	30	32.3	30	33.2	30	19.9	22	20	22	14.7	18.5	14.8	22
4.5-52	0.6	41.8	15	43.9	15	44.6	18.5	45	22	27.3	15	27.4	18.5	20.3	15	20.3	15
4.5-52	1.0	38.9	22	42.4	22	43.6	30	44.2	30	26.6	18.5	26.7	18.5	19.7	15	19.7	18.5
4.5-72	0.4	57.3	15	58.8	15	59.3	18.5	59.6	22	36.1	15	36.2	15	26.9	15	26.9	18.5
4.5-72	0.6	55.5	18.5	57.7	22	58.5	22	58.9	22	35.5	22	35.6	18.5	26.3	18.5	26.3	22
5.0-28	2.5	17.3	37	24.7	37	27.2	37	28.4	45	17.1	30	17.3	37	12.9	30	12.9	37
	3.2			23.1	45	26.3	45	27.9	55	16.7	37	17	45	12.7	37	12.8	37
	4.0			21.3	55	25.3	55	27.3	75	16.2	45	16.5	45	12.4	37	12.6	45
5.0-40	1.6	34.6	37	39.5	45	41.1	45	42	45	25.4	30	25.6	37	19.9	30	20	37
5.0-40	2.0	32.3	37	38.4	45	40.5	45	41.5	45	25.1	37	25.3	37	18.8	37	18.9	37
5.0-40	2.5	29.4	45	37.1	45	39.7	55	41	55	24.7	37	24.9	37	18.5	37	18.6	37
