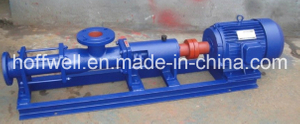

CE Approved G85-1 Waster Water Single Screw Pump

  • Model NO.: G85-1
  • Screw Suction Method: Single Suction
  • Performance: No Blocking
  • Certification: CE, ISO
  • Rotor Material: 2Cr13/SS304
  • Seal: Mechanical Seal/Packing Seal
  • Head: 3--6bar
  • Power: 5.5KW--15KW
  • Specification: ISO, CE
  • HS Code: 84136040
  • Screw Number: Single Screw Pump
  • Pump Shaft Position: Horizontal
  • Application: Sewerage Treatment, Food, Chemical
  • Pump Body Material: Cast Iron HT200/SS304
  • Stator Material: NBR/Viton/Food Ruber
  • Capacity: 8m3/h-35m3/h
  • Speed: 162rpm to 346rpm
  • Trademark: HOFFWELL
  • Origin: Cangzhou, China
Quantity:
G Series Single Screw Slurry Pump

>>>Pump Description

G single screw pumps are developed from positive displacement pumps. The main parts are single screw( rotor ) and fixed shaft bushing( stator).

Because of special geometry lengthy of the rotor and stator, there are two independent sealing space. When fluid flows axially and evenly, the speed is low inside and the sealing space remains same and the pressure more stable. The pump is fit for conveying all kinds of fluids which are 80 Deg.C.-150 Deg.C..

The single screw pump can be driven by turning coupling directly or with adjustable speed motor, triangular belt, gear box or other facilities.


>>>Pump Features
1. It has wide application. It can transfer all flowing medium and non-running liquid
2. It has steady flow and pressure, no pulsation.
3. Change the speed, so the output flow be modified, it could be used to in measuring input.
4. it has strong absorb power, low working noise, no leakage and temperature rising.
CE Approved G85-1 Waster Water Single Screw Pump
>>>Pump Application
A. Petro Industry: Thickened oil delivery; OIl and gas mixed delivery; Oil and Water separate and waste oil recovery system; Sewage treatment; Polhmer delivery;

B. Chemical industry and Pharmacy: All kinds of paste matters; All kinds of latescence; All kinds of suspension; All kinds of liquid which continueains gas and solid; All kinds of medium which could not be mix or eat;

C. Environment Engineering: Different sewage delivery; Dewatering sludge delivery; Measuring input of floculent and chemical preparation; Oil and water separate and waste gas desulphurisation;

D. Mineral Products Engineering: Water gas equipment and delivery; Production equipment of titanium white; Kaolin and calcium crbonate; Feeding to spiral-flow and filter; Chemical input; Charging and growting; Electrolyte treatment;

E. Food Industry: Dairy Products; Juice; Puree; Slough tissue and condiment; Beer and brewery;

F. Papermaking Industry: Raw material equipment; Process of coating and tinting; Chemical measuring; Slag and waster water treatment.


>>>Transportation medium:
Liquid with different viscosity, especially the thick medium which is difficult to transfer.
Liquid with different concentration and dry material which is separated an dehydrated.
Liquid which contains solid particle, fibre an suspended matter.
Mixture of liquid, gas and solid.
Sensibility liquid which could net be mixed, cut ang rob.
Corrosive liquid.


CE Approved G85-1 Waster Water Single Screw Pump
CE Approved G85-1 Waster Water Single Screw Pump
  >>>G85-1 Date Sheet:


Model
Flow Pressure Speed Power Efficiency Size of inlet & outlet Viscosity Temperature
G85-1 8--35m3/h 0.3-0.6Mpa 162-346rpm 5.5-15KW 68% 150/150mm ≤60000cst ≤120 deg C
Packing details 2175mm*380mm*440mm for one bare shaft pump with export standard wooden case.
Warranty 12months since delivery date.
Delivery time Within 15 days for exworks.

>>>FAQ--- Frequently Asked Question

1. How to get our quotation in time, pls answer following questions:

 A. What liquid do you transfer? Oil, Water, Food or Corrosive Chemical liquid, with solid particle or not, and so on~

 B. What's the flow or capcity (m3/h, L/m)?

 C. What's the discharge head (m, feet, Mpa, bar )

 If you do not have any request, we will do as our normal standard.

 D. Contact us to get the quotation:



2. OEM: Ok

3. MOQ: 1set

4. Package: Standar export Plywood Case or Styrofoam with Carton

5. Shipping ways: By sea, By air, By express

6. Lead time: 3-15days

7. Term of  payment:  100% T/T, Aliexpress,  L/C, Westunion

8. Why choose us:  20years experiences manufacturer

                                Good quality with competitive pirce

                                ISO2000, CE certificate

                                Professional after-sales service
