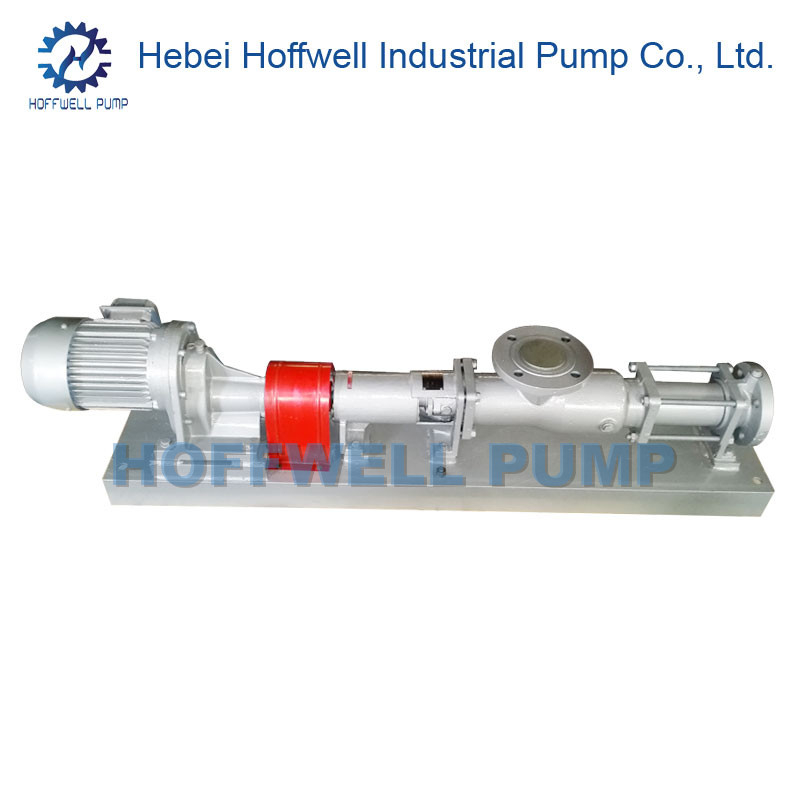

G Series Heical Rotor Single Screw Pump

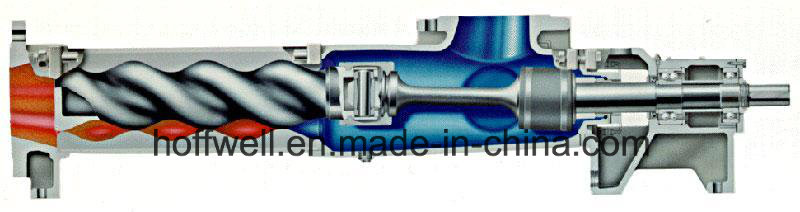

G single screw pumps are developed from positive displacement pumps. The main parts are single screw( rotor ) and fixed shaft bushing( stator).
Because of special geometry lengthy of the rotor and stator, there are two independent sealing space. When fluid flows axially and evenly, the speed is low inside and the sealing space remains same and the pressure more stable. The pump is fit for conveying all kinds of fluids which are 80 Deg.C.-150 Deg.C..
The single screw pump can be driven by turning coupling directly or with adjustable speed motor, triangular belt, gear box or other facilities.
1. It has wide application. It can transfer all flowing medium and non-running liquid
2. It has steady flow and pressure, no pulsation.
3. Change the speed, so the output flow be modified, it could be used to in measuring input.
4. it has strong absorb power, low working noise, no leakage and temperature rising.
A. Petro Industry: Thickened oil delivery; OIl and gas mixed delivery; Oil and Water separate and waste oil recovery system; Sewage treatment; Polhmer delivery;
B. Chemical industry and Pharmacy: All kinds of paste matters; All kinds of latescence; All kinds of suspension; All kinds of liquid which continueains gas and solid; All kinds of medium which could not be mix or eat;
C. Environment Engineering: Different sewage delivery; Dewatering sludge delivery; Measuring input of floculent and chemical preparation; Oil and water separate and waste gas desulphurisation;
D. Mineral Products Engineering: Water gas equipment and delivery; Production equipment of titanium white; Kaolin and calcium crbonate; Feeding to spiral-flow and filter; Chemical input; Charging and growting; Electrolyte treatment;
E. Food Industry: Dairy Products; Juice; Puree; Slough tissue and condiment; Beer and brewery;
F. Papermaking Industry: Raw material equipment; Process of coating and tinting; Chemical measuring; Slag and waster water treatment.
Liquid with different viscosity, especially the thick medium which is difficult to transfer.
Liquid with different concentration and dry material which is separated an dehydrated.
Liquid which contains solid particle, fibre an suspended matter.
Mixture of liquid, gas and solid.
Sensibility liquid which could net be mixed, cut ang rob.
>>>G35-1 Date Sheet:
|Flow||Pressure||Speed||Power||Efficiency||Size of inlet & outlet||Viscosity||Temperature|
|G35-1||3.25m3/h||0.6Mpa||579rpm||1.5KW||66%||65/50mm||≤60000cst||≤120 deg C|
|Packing details||877mm*180mm*256mm @ 95kgs for one bare shaft pump with export standard wooden case.|
|Warranty||12months since delivery date.|
|Delivery time||Within 12 days for exworks.|
