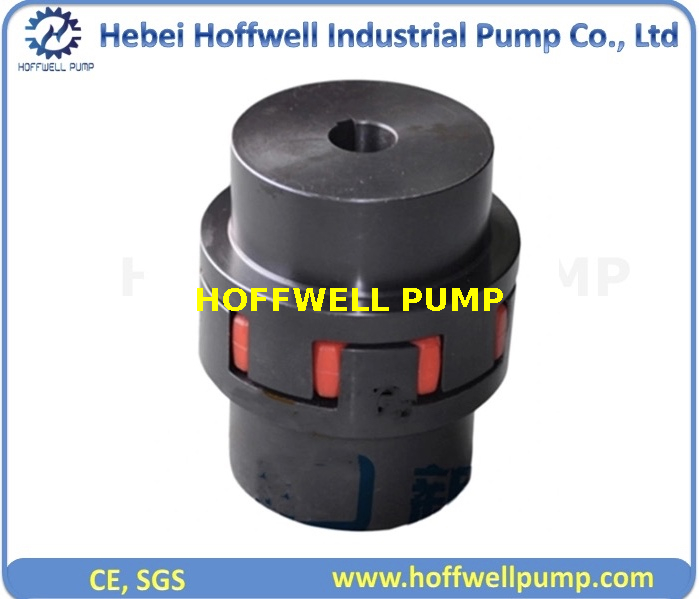

Overview of XL(LX) flexible jaw coupling:
XL(LX) jaw coupling is a type of general purpose power transmission coupling that also can be used in motion control (servo) applications. It is designed to transmit torque (by connecting two shafts) while damping system vibrations and accommodating misalignment, which protects other components from damage. Jaw couplings are composed of three parts: two metallic hubs and an elastomer insert called an element, but commonly referred to as a "spider". The three parts press fit together with a jaw from each hub fitted alternately with the lobes of the spider. Jaw coupling torque is transmitted through the elastomer lobes in compression.
XL(LX) Star Type Flexible Coupling comprises concave convex claw, the pressure on the surface of the involute tooth is very small, even under overload, the tooth will not wear or deformation.
Features of XL(LX) flexible jaw coupling:
1.Compact structure and small inertia
2.Absorb vibration
3.Operating temperature 35-80oC
4.It will not deform when overload,and no maintenance
Drawing of XL(LX) Flexible Jaw Coupling:
XL Star Type Flexible Coupling Main Dimension(JB/T 10466-2004)
| Type | Nominal torque Tn/N·m | Shaft hole diameter | L | D | D1 | B1 | S | |
| d1,d2 | Y | J1,Z1 | ||||||
| XL1 | 20 | 6,7 | 18 | - | 40 | 32 | 12 | 2 |
| 8,9 | 22 | - | ||||||
| 10,11 | 25 | 22 | ||||||
| 12,14 | 32 | 27 | ||||||
| 16,18,19 | 42 | 30 | ||||||
| XL2 | 71 | 8,9 | 22 | - | 55 | 40 | 14 | |
| 10,11 | 25 | 22 | ||||||
| 12,14 | 32 | 27 | ||||||
| 16,18,19 | 42 | 30 | ||||||
| 20,22,24 | 52 | 38 | ||||||
| XL3 | 200 | 10,11 | 25 | 22 | 65 | 48 | 15 | 2.5 |
| 12,14 | 32 | 27 | ||||||
| 16,18,19 | 42 | 30 | ||||||
| 20,22,24 | 52 | 38 | ||||||
| 25,28 | 62 | 44 | ||||||
| XL4 | 400 | 12,14 | 32 | 27 | 80 | 66 | 18 | 3 |
| 16,18,19 | 42 | 30 | ||||||
| 20,22,24 | 52 | 38 | ||||||
| 25,28 | 62 | 44 | ||||||
| 30,32,35,38 | 82 | 60 | ||||||
| XL5 | 560 | 14 | 32 | 27 | 95 | 75 | 20 | |
| 16,18,19 | 42 | 30 | ||||||
| 20,22,24 | 52 | 38 | ||||||
| 25,28 | 62 | 44 | ||||||
| 30,32,35,38 | 82 | 60 | ||||||
| 40,42 | 112 | 84 | ||||||
| XL6 | 630 | 16,18,19 | 42 | 30 | 105 | 85 | 21 | 3.5 |
| 20,22,24 | 52 | 38 | ||||||
| 25,28 | 62 | 44 | ||||||
| 30,32,35,38 | 82 | 60 | ||||||
| 40,42,45,48 | 112 | 84 | ||||||
| XL7 | 800 | 20,22,24 | 52 | 38 | 120 | 98 | 22 | 4 |
| 25,28 | 62 | 44 | ||||||
| 30,32,35,38 | 82 | 60 | ||||||
| 40,42,45,48,50,55 | 112 | 84 | ||||||
| XL8 | 900 | 22,24 | 52 | 38 | 135 | 115 | 26 | 4.5 |
| 25,28 | 62 | 44 | ||||||
| 30,32,35,38 | 82 | 60 | ||||||
| 40,42,45,48,50,55 | 112 | 84 | ||||||
| 60,63,65 | 142 | 107 | ||||||
| XL9 | 2000 | 30,32,35,38 | 82 | 60 | 160 | 135 | 30 | 5 |
| 40,42,45,48,50,55,56 | 112 | 84 | ||||||
| 60,63,65,70,71,75 | 142 | 107 | ||||||
| XL10 | 5000 | 40,42,45,48,50,55,56 | 112 | 84 | 200 | 160 | 34 | 5.5 |
| 60,63,65,70,71,75 | 142 | 107 | ||||||
| 80,85,90 | 172 | 132 | ||||||
| XL11 | 7100 | 50,55,56 | 112 | 84 | 225 | 180 | 38 | 6 |
| 60,63,65,70,71,75 | 142 | 107 | ||||||
| 80,85,90,95 | 172 | 132 | ||||||
| 100 | 212 | 167 | ||||||
| XL12 | 8000 | 60,63,65,70,71,75 | 142 | 107 | 255 | 200 | 42 | 6.5 |
| 80,85,90,95 | 172 | 132 | ||||||
| 100,110 | 212 | 167 | ||||||
| XL13 | 10000 | 60,63,65,70,71,75 | 142 | 107 | 290 | 230 | 46 | 7 |
| 80,85,90,95 | 172 | 132 | ||||||
| 100,110,120,125 | 212 | 167 | ||||||
| XL14 | 14000 | 60,63,65,70,71,75 | 142 | 107 | 320 | 255 | 50 | 7.5 |
| 80,85,90,95 | 172 | 132 | ||||||
| 100,110,120,125 | 212 | 167 | ||||||
| 130,140 | 252 | 202 | ||||||
| XL15 | 20000 | 80,85,90,95 | 172 | 132 | 370 | 290 | 57 | 9 |
| 100,110,120,125 | 212 | 167 | ||||||
| 130,140,150 | 252 | 202 | ||||||
| 160 | 302 | 242 | ||||||
| XL16 | 25000 | 85,90,95 | 172 | 132 | 420 | 325 | 64 | 10.5 |
| 100,110,120,125 | 212 | 167 | ||||||
| 130,140,150 | 252 | 202 | ||||||
| 160,170,180 | 302 | 242 |
