P-3 Self-Priming Sewage Pump for Industrial Waste

  • Model NO.: p-3 self-priming sewage pump
  • Working Pressure: Middle Pressure Pump
  • Position of Pump Shaft: Vertical Pump
  • Mounting Height: Suction Centrifugal
  • Usage: Pumps
  • Colour: Blue and Green
  • Head: 5-70mm
  • Specification: CE ISO
  • HS Code: 8413709990
  • Impeller Number: Single-Stage Pump
  • Influent Type of Impeller: Single Suction Pump
  • Pump Casing Combined: Verticaljoint Surface Pump
  • Impeller: Open
  • Size: P-3 Self-Priming Sewage Pump
  • Material: Cast Iron and Stainless Steel
  • Trademark: HOFFWELL
  • Origin: China
Quantity:
Product Features:
   P-type self-priming non-clog sewage pump is the introduction of the U.S Goldman"s latest technologies and processes. On this basis,developed a new generation of products.Fully taken into account the use of sewage pumps particularity on design,set up demolished dig dirt hole structures in front of the pump to ensure strong debris blockage can be cleared promptly.Unique oily mechanical seal cavity structuring made the sealing performance more reliable and effectively avoided the dry anhydrous no-load operation the mechanical seal fron damage.It is a good sewage pumps that can smooth deal with the sewage have soilds particles.Designed no-clogging open impeller can through 76mm solid particles.Easy to operated.A very large vortex chamber in the pump plays a very important role.When the pump running complete,do not need to install a check valve on the export pipes,and the efficient operation of the sewage.It is well known as"the king of self-priming sewage pumps",is the best new generation of sewage pump.

Scope of application
  1.The classification of municipal sewage treatment factory and concentrate treatments systems engineering;
  2.Municipal sewage project,construction sites,air defense systems pumping station;
  3.Light industry,paper making textile food,chemical,electrical,mining and other industrial waste.
  4.Residential sewage discharge,sewage water purification systems and sediment;
  5.Leather industry,slaughterhouse wastewater,and aquaculuture ponds;
  6.Wine industry and the sugar industry;
  7.Do not have strong corrosive but has been heavily polluted sewage discharges.

Operating Condition:
1.Liquid temperature:-10ºC~120ºC,density of medium is≤1.2x1.3kg/m⊃3;,PH is within 2-12
2.The soild medium volume ration≤2%
3.Suction can reach 6 meters.
4.Max.soild dia:SP-363mm;Sp-4/SP-676mm
5.Environment temperature:≤40ºC

Technical parameters:

Model:

JT-2,JT-3,JT-4, JT-6,JT-8,JT-10,JT-12

Max. capacity:  2~1270m3/h
Max. Head: 2-80m
Max.solids: 76mm
Max. temperature: 160F(71degree)
Materials of Construction:  Cast iron,ss304,ss316,ss316l
Engine: Cummins,Perkinks,Deutz,Chinese Diesel engine,Electric Motor or as customer                         request.
Engine type:  Water cooled/Air cooled
Method of Connection: Motor mounted,engine mounted,V-belt driven
Skid Mounted on the Trailer  :  2 or 4 wheels trailer
Package:

Standard export plywood case



Performance Table :

MODEL size R.P.M. R/MIN MAX FLOW (m3/H ) Max Head  (m) Suction Lift ( m ) Power ( HP) MAX SOLIDS mm NET WEIGHT kg GROSS WEIGHT kg
P-2 2 inch 1150-2900 46 36 7.6 1 - 10 HP 44.45 92 114
P-3 3 inch 650-2150 107 35 7.6 1 - 20 HP 63.5 183 205
P-4 4 inch 650-1950 163 36 7.6 1 - 30 HP 76.2 259.5 280
P-6 6 inch 650-1550 330 33 7.6 2 - 40 HP 76.2 364 391
P-8 8 inch 650-1350 600 34 7 7.5 - 75 HP 76.2 581 634
P-10 10 inch 650-1450 775 40 6.7 10 - 100 HP 76.2 635 663
P-12 12 inch 650-1250 1275 42 4.9 20 - 125 HP 50 998 1066
H-3 3inch 850-2150 85 62 7.6 1.5 - 25 HP 20.63 214 225
H-4 4 inch 850-2150 148 60 5.2 3 - 40 HP 28.57 272 297
H-6 6 inch 850-1950 308 58 4.5 5 - 75 HP 31.75 413 437

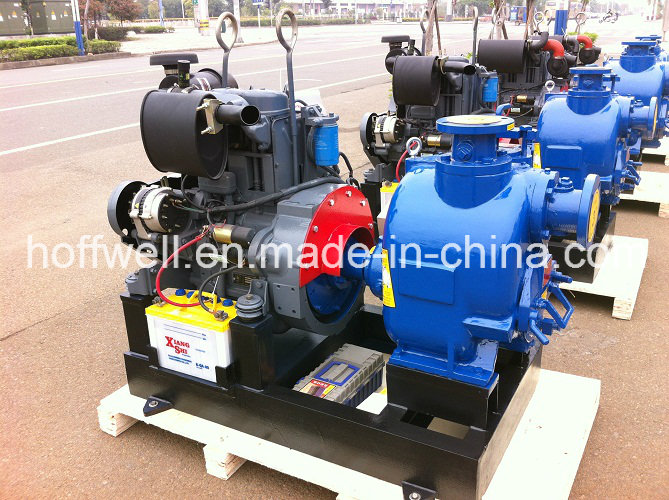

  Other pic for your reference

P-3 Self-Priming Sewage Pump for Industrial Waste

P-3 Self-Priming Sewage Pump for Industrial Waste
