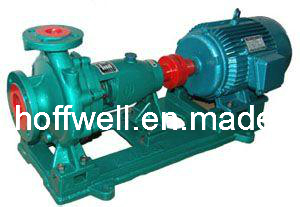

IH Stainless Steel Chemical Centrifugal Pump

  • Model NO.: IH50-32-200
  • Working Pressure: Low Pressure Pump
  • Position of Pump Shaft: Horizontal Pump
  • Mounting Height: Suction Centrifugal
  • Usage: Circulating Pump
  • Impeller Material: Stainless Steel 304/316
  • Seal: Mechanical Seal
  • Specification: CE, ISO9001
  • HS Code: 84137100
  • Impeller Number: Single-Stage Pump
  • Influent Type of Impeller: Single Suction Pump
  • Pump Casing Combined: Horizontal Split Pumps
  • Impeller: Open
  • Pump Body Material: Stainless Steel 304/316
  • Shaft Material: Stainless Steel 304/316
  • Trademark: HOFFWELL
  • Origin: Cn
Quantity:

OVERVIEW
IH series pumps is single-stage end-suction (axial suction) cantilever type centrifugal pump, which is used to transport corrosive liquid with viscosity similar to water and without solid particles. The marked and rated performances and dimensions adopt ISO2858 international standard.
The temperature of transported media of IH model chemical pump is -20105. Through adopting cooling method, it can transport media with higher temperature if necessary, and is applied to transport various corrosive media or media in which pollution is forbidden similar to water in such industries as chemical industry, petroleum, metallurgy, electric power, papermaking, food, pharmacy and synthetic fiber etc.

RANGE OF PERFORMANCE

Capacity: 6.3---400m/h
Head: 5---125m
Speed: 2900r/min and1450r/min
Power of fitted motor: 0.55---90kW
Inlet diameter: 50---200mm
The highest work pressure: 1.6MPa
Material: Cast steel ,SS304, SS316, SS316L, dual-phase steel;

IH series pumps are classified as 29 basic types, among which, 22 two-speed (2900, 1450r/min) types being transformed after cut by the impeller diameter of and Models, the total specifications can be 112.

STRUCTURES DESCRIPTION

1. IH series pumps are the series of products designed according to ISO international standards in all industries in China. It is mainly composed of pump body, impellers, seal rings, impeller nuts, pump cover, seal parts, intermediate support, spindle, suspended parts and so on.

2. Structural features: The pump cover is fixed on the intermediate support, and the pump cover is clamped in the middle by coupling between pump body and intermediate support. On the pump body, water is input axially and output radially. Support feet can be fixed on the base directly. The suspended parts are fixed onto the intermediate support through the rabbet, and are supported onto the base by suspended frame. To make it convenient to disassemble, the prolonged coupling is designed, so that it is unnecessary to disassemble the coupled input & output pipes during check and maintenance. To pump body and motor, only by disassembling the intermediate coupler of the prolonged coupling, users are able to screw out rotor part for check and maintenance, which is a conventional structural pattern in the world.

3. Rotation direction: The pump is driven by motor directly through a prolonged coupling, seen from the side of the motor, it rotates clockwise.

4. Spindle seal patterns: Spindle seal patterns of pump are of two types such as stuffing seal and mechanical seal. The stuffing seal is that on stuffing case in pump cover, with software stuffing for sealing, input water of a certain pressure into the stuffing case, for cooling, lubrication and cleaning on seal; Mechanical seal is of two types such as single-surface mechanical seal and double-surface mechanical seal, input water of a certain pressure into the seal chamber, for washing and cooling on the abrasive surfaces. Seal patterns of pump are of stuffing seal or mechanical seal, according to users' requirements, in a same time, seal chamber sizes and shaft gland patterns of other structures according to ISO 3069 as required, are allowed, such as mechanical seals of corrugated pipes, assistant impeller seals and so on.

Other models:


Model
Speed
 (r/min)
     Flow Q Head
   (m)
 η
(%)
     Power NPSH
   (m)
(m 3 /h) (L/S) Shaft Motor
      (KW)
IH50-32-125 2900 12.5 3.47 20 51 1.33 2.2 2
1450 6.3 1.75 5 45 0.19 0.55 2
IH50-32-125A 2900 11.3 3.14 16.4 50 1.01 1.5 2
1450 5.7 1.58 4.1 43 0.15 0.55 2
IH50-32-160 2900 12.5 3.47 32 46 2.37 3 2
1450 6.3 1.75 8 40 0.34 0.55 2
IH50-32-160A 2900 11.3 3.14 26.4 44 1.85 3 2
1450 5.7 1.58 6.6 37.1 0.28 0.55 2
IH50-32-200 2900 12.5 3.47 50 39 4.36 5.5 2
1450 6.3 1.75 12.5 33 0.65 1.1 2
IH50-32-200A 2900 11.3 3.14 41 38 3.24 4 2
1450 5.7 1.58 10.3 31 0.52 0.75 2
IH50-32-250 2900 12.5 3.47 80 33 8.25 11 2
1450 6.3 1.75 20 27 1.27 2.2 2
IH50-32-250A 2900 11.7 3.25 70 32 6.97 11 2
1450 5.9 1.64 17.5 25 1.25 1.5 2
IH50-32-250B 2900 11 3.06 62 30 6.19 7.5 2
IH65-50-125 2900 25 6.94 20 62 2.2 3 2
1450 12.5 3.47 5 55 0.31 0.55 2
IH65-50-125A 2900 22.7 6.31 16.5 61 1.67 2.2 2
1450 11.3 3.14 4.1 54 0.23 0.55 2
IH65-50-160 2900 25 6.94 32 57 3.82 5.5 2
1450 12.5 3.47 8 51 0.53 0.75 2
IH65-50-160A 2900 22.7 6.31 26.5 56 2.93 4 2
1450 11.3 3.14 6.6 49.6 0.41 0.55 2
IH65-40-200 2900 25 6.94 50 52 6.55 11 2
1450 12.5 3.47 12.5 46 0.93 1.5 2
IH65-40-200A 2900 22.7 6.31 41 50 5.07 7.5 2
1450 11.3 3.14 10.3 44 0.72 1.1 2
IH65-40-250 2900 25 6.94 80 46 11.84 15 2
1450 12.5 3.47 20 39 1.75 3 2
IH65-40-250A 2900 23.4 6.5 74.8 45 10.6 15 2
1450 11.7 3.25 17.5 37.9 1.47 2.2 2
IH65-40-250B 2900 22 6.11 61.8 44 8.42 11 2
IH65-40-315 2900 25 6.94 125 39 21.8 30 2
1450 12.5 3.47 32 33 3.3 5.5 2
IH65-40-315A 2900 23.4 6.5 109.5 38 18.36 30 2
1450 11.7 3.25   28 33 2.71 4 2

IH65-40-315B
2900     22        6.11 96.5 37 15.63 22      2
IH80-65-125 2900 50 13.89 20 69 3.95 5.5 3
1450 25 6.94 5 64 0.53 0.75 2.5
IH80-65-125A 2900 45.3 12.58 16.5 67 3.04 4 3
1450 22.7 6.31 4.1 62 0.41 0.55 2.5
IH80-65-160 2900 50 13.89 32 67 6.51 11 2.3
1450 25 6.94 8 62 0.88 1.5 2.3
IH80-65-160A 2900 45.3 12.58 26.4 65 5.02 7.5 2.3
1450 22.7 6.31 6.6 60 0.68 1.1 2.3
IH80-50-200 2900 50 13.89 50 63 10.81 15 2.5
1450 25 6.94 12.5 57 1.49 2.2 2
IH80-50-200A 2900 45.3 12.58 41 61 8.29 11 2.5
1450 22.7 6.31 10.3 56.1 1.14 2.2 2
IH80-50-250 2900 50 13.89 80 53 20.57 30 2.5
1450 25 6.94 20 50 2.72 5.5 2
IH80-50-250A 2900 45.3 12.58 65.7 52 15.61 22 2.5
1450 22.7 6.31 16.4 49 2.07 3 2
IH80-50-315 2900 50 13.89 125 50 34.1 45 2.5
1450 25 6.94 32 48 4.54 7.5 2.5
IH80-50-315A 2900 45.3 12.58 102.6 48 26.4 37 2.5
1450 22.7 6.31 25.7 46 3.46 5.5 2.5
IH100-80-125 2900 100 27.78 20 73 7.47 11 4.2
1450 50 13.89 5 69 0.99 1.5 3.4
IH100-80-125A 2900 91.8 25.5 16.8 71 5.92 7.5 4.2
1450 45.9 12.75 4.2 67 0.78 1.1 3.4
IH100-80-160 2900 100 27.78 32 73 11.9 15 4.3
1450 50 13.89 8 68 1.58 2.2 3.4
IH100-80-160A 2900 91 25.28 26.5 71 9.25 15 4.3
1450 45.5 12.64 6.6 67 1.22 1.5 3.4
IH100-65-200 2900 100 27.78 50 72 18.92 22 3.9
1450 50 13.89 12.5 68 2.5 3 2.5
IH100-65-200A 2900 91 25.28 41.5 70 14.7 18.5 3.9
1450 45.5 12.64 10.3 66 1.93 3 2.5
IH100-65-250 2900 100 27.78 80 68 32.06 37 3.6
1450 50 13.89 20 63 4.33 5.5 2.5
IH100-65-250A 2900 93.5 25.97 70 65 27.44 37 3.6
1450 45.5 12.64 17.4 61 3.53 5.5 2.5

IH100-65-250B
2900     87.8     24.39 61.7 64 23.1 30      3.6
IH100-65-315 2900 100 27.78 125 62 54.94 75 3.2
1450 50 13.89 32 58 7.52 11 2
IH100-65-315A 2900 93.5 25.97 109 61 45.53 75 3.2
1450 46.5 12.92 28 56 6.33 11 2
IH100-65-315B 2900 88 24.44 97 60 38.77 55 3.2
IH125-100-200 2900 200 55.56 50 77 35.39 45 5
1450 100 27.78 12.5 73 4.66 7.5 2.9
IH125-100-200A 2900 182 50.56 41.4 75 27.38 37 5
1450 91 25.28 10.3 71 3.6 5.5 2.9
IH125-100-250 2900 200 55.56 80 75 58.13 75 4.5
1450 100 27.78 20 72 7.56 11 2.3
IH125-100-250A 2900 186.5 51.81 69.5 73 48.35 75 4.5
1450 93 25.83 17.4 70 6.29 11 2.3
IH125-100-250B 2900 175.5 48.75 61.5 71 41.42 55 4.5
IH125-100-315 2900 200 55.6 125 72 94.62 110 4.5
1450 100 27.8 32 65 13.42 22 2.5
IH125-100-315A 2900 186.5 51.81 108.7 71 77.81 90 4.5
1450 93 25.83 27.2 64 10.77 15 2.5
IH125-10-400 1450 100 27.78 50 55 24.77 30 2.5
IH125-100-400A 1450 93 25.83 43.2 54 20.27 30 2.5
IH150-125-250 1450 200 55.56 20 77 14.16 18.5 2.8
IH150-125-250A 1450 182 50.56 16.5 75 10.91 15 2.8
IH150-125-315 1450 200 55.6 32 75 23.25 30 2.8
IH150-125-315A 1450 182 50.56 25.5 73 17.32 22 2.8
IH150-125-315B 1450 165 45.83 22 72 13.74 18.5 2.8
IH150-125-400 1450 200 55.56 50 70 38.93 55 2.5
IH150-125-400A 1450 182 50.56 41 68 29.94 37 2.5
IH150-125-400B 1450 165 45.83 34 67 22.82 30 2.5
IH200-150-250 1450 400 111.11 20 79 27.59 37 2.8
IH200-150-250A 1450 363 100.83 16.5 79 20.66 30 2.8
IH200-150-315 1450 400 111.11 32 79 44.15 55 3.5
IH200-150-315A 1450 363 100.84 25.5 77 32.76 45 3.5
IH200-150-315B 1450 329 91.39 21.6 76 25.48 37 3.5
IH200-150-400 1450 400 111.11 50 78 69.87 90 3.5
IH200-150-400A 1450 363 100.83 41 76 53.36 75 3.5
IH200-150-400B 1450 329 91.39 33.8 75 40.4 55 3.5
