Cast Iron KCB External Gear Pump for Fuel Oil

Model:
KCB7600
Brand:
HOFFWELL
Code:
84136029

Availability:

Quantity:



Inquire Add to Basket

Product Description

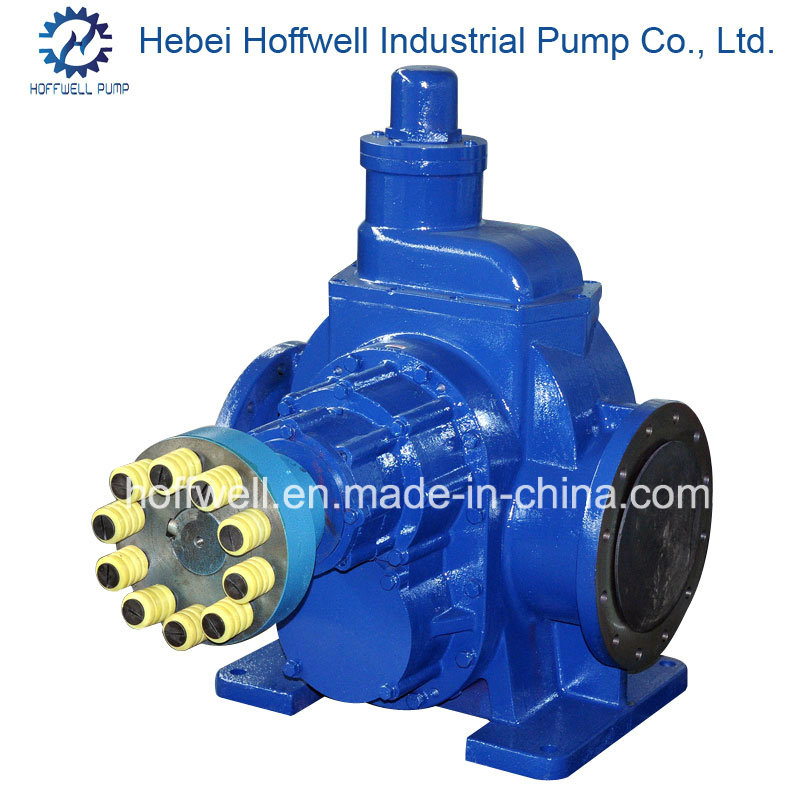

KCB External Gear Pump For Fuel Oil

>>>Product Features:
1. The pump is properly designed with leakage and return chute, which lets the gears bear the least torque force and reduces load and wear on bearings in order to raise pump's efficiency.
2. Less teeth and small volume; the herringbone tooth structure is of good strained condition, small vibration and puissant.
3. internal installed bearing in pump is lubricated by the conveying medium. So this pump series is just applied to conveying lubricating liquid.

CE Approved KCB Series Gear Fuel Oil Pump
>>>Application:
KCB oil gear pump can give performance as transferpump or booster pump in oil delivery system. It can be also applied as a fuel pump for dilivery system, pressurization and injection in fuel supply system and in all industry fields as lubricating pump. It is univeral type used as lubricant, delivery or supercharge pump in many industry fields.

>>>Conveyed Medium:
1. Non-corrosive lubricant without solid particles or fiber;
2. Other lubricant liquids like oil.

CE Approved KCB Series Gear Fuel Oil Pump

>>>KCB7600 Gear Oil Pump Specifications

Model	Capacity	Head	Speed	(NPSH)r	Efficiency	Power	Frame Size
KCB7600	460m3/h	6bar	989rpm	8m	44%	200KW	Y355M3-6
Packing details	1150mm X 810mm X 1300mm, with export standard wooden case.
Delivery time	15-25 days.

>>>FAQ--- Frequently Asked Question

1. How to get our quotation in time, please answer following questions:

A.What liquid do you transfer? Oil, Water, Food or Corrosive Chemical liquid, with solid particle or not, and so on~

B. What's the flow or capcity (m3/h, L/m)?

C.What's the discharge head (m, feet, Mpa, bar )

If you do not have any request, we will do as our normal standard.

D. Contact us to get the quotation:

2. OEM: Ok

3. MOQ: 1set

4. Package: Standar export Plywood Case or Styrofoam with Carton

5. Shipping ways: By sea, By air, By express

6. Lead time: 3-15days

7. Term of payment: 100% T/T, Aliexpress, L/C, Westunion

8. Why choose us: more than 20 years experiences manufacturer

Good quality with competitive pirce

ISO2000, CE certificate, CCS certificate

Professional after-sales service

>>>KCB Gear Oil Pump Other Model Parameters:

Model	Capacity Q		Speed r/min	Exhaust Pressure Mpa	(NPSH)r m	Efficiency η %	Motor
	m³/h	L/min					Power kw	Model
KCB-18.3	1.1	18.3	1400	1.45	5	44	1.5	Y90L-4
2CY-1.1/1.45
KCB-33.3	2	33.3	1420	1.45	5	44	2.2	Y100L1-4
2CY-2/1.45
KCB-55	3.3	55	1400	0.33	7	41	1.5	Y90L-4
2CY-3.3/0.33
KCB-83.3	5	83.3	1420	0.33	7	43	2.2	Y100L1-4
2CY-5/0.33
KCB-135	8	135	940	0.33	5	46	2.2	Y112M-6
2CY-8/0.33
KCB-200	12	200	1440	0.33	5	46	4	Y112M-4
2CY-12/0.33
KCB-300	18	300	960	0.36	5	42	5.5	Y132M2-6
2CY-18/0.36
KCB-483.3	29	483.3	1440	0.36	5.5	42	11	Y160M-4
2CY-29/0.36
KCB-633	38	633	970	0.28	6	43	11	Y160L-6
2CY-38/0.28
KCB-960	58	960	1470	0.28	6.5	43	18.5	Y180M-4
2CY-58/0.28
KCB-1200	72	1200	740	0.6	7	43	37	Y280S-8
KCB-1600	95	1600	980				45	Y280S-6
KCB-1800	112	1800	740	0.6	7.5	43	55	Y315S-8
KCB-2500	150	2500	985				75	Y315S-6
KCB-2850	170	2850	740	0.6	8	44	90	Y315L1-8
KCB-3800	230	3800	989				110	Y315L1-6
KCB-4100	245	4100	743	0.6	8	44	132	Y355M1-8
KCB-5400	325	5400	989				160	Y355M1-6
KCB-5600	330	5600	744	0.6	8	44	160	Y355M2-8
KCB-7600	460	7600	989				200	Y355M3-6
KCB-7000	420	7000	744	0.6	8	44	185	Y355L1-8
KCB-9600	570	9600	989				250	Y355L2-6
