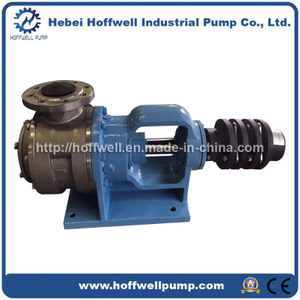

Cast Iron 1.5 Inch NYP Internal Gear Oil Pump

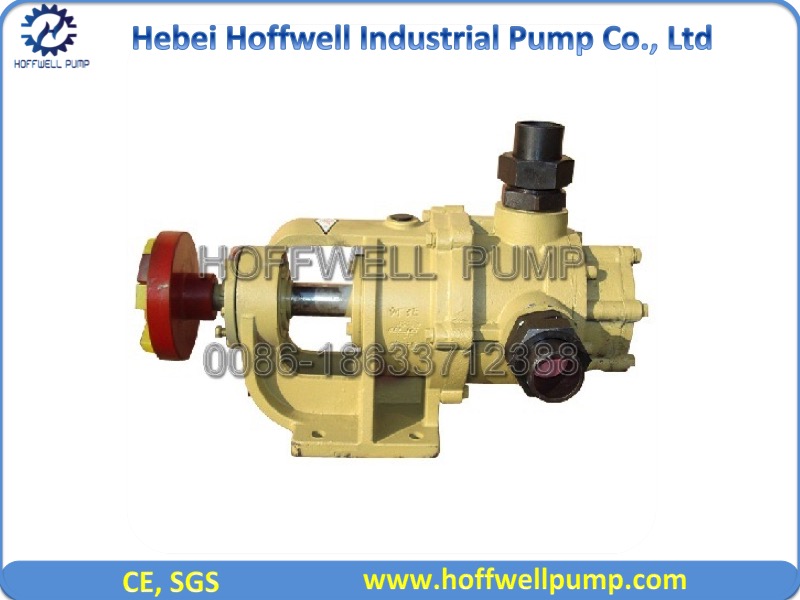

NYP Series Molasses Internal Gear Pump

>>>Brief introduction

NYP series internal gear pump is a kind of new positive displacement pump, and is designed according to the different fields requirements of petroleum, chemical insustry, paint, medicine, foodstuff and so on. It widely applies to a variety of mediums with different property and viscosity because of special structure and selected different pump's materials.
Proper medium temperature: -10. C-220. C
Proper medium viscosity: 1.0cst-300, 000cst

>>>Pump Structure

(1)working principle
Driving gear (outside rotor) with internal tooth drives the internal rotor and turns in same direction in the full closed pump body. The pump casting and crescent of the front cover separate the inlet from the outlet. When it turns, negative pressure formed at the suction port, the liquid inhaled and being taken to the outlet by rotor, then the liquid is expelled from the discharge port as the gears mesh. The transportation of the liquid finished

(2)Structure Feature
Component: Internal rotor, outside rotor, shaft, pump body, front cover, seal, bearing etc.
The seal of pump adopts packing seal or mechanical seal. When the delivered medium is high temperature, high viscosity or strong corrosion, packing seal should be adopted.
When the delivered medium is easy crystalline materials, we can design the heat preservation jacket in pump body and front cover in order to melt the medium with steam when working, the pump can be also fitted with the safety valve.
The pump set is composed of the pump, motor and base plate, the direction way is belt wheel driving or coupling driving.
The rotation direction is clockwise from motor end.

>>>Advantage

(1)steady delivery without pulsation, little vibration and low noise
(2)outstanding self-priming ability
(3)the pump can deliver the varied corrosion medium if the pump parts selected proper materials. In addition the working temperature can reach max 220. C
(4). The same rotary direction of internal rotor and outside rotor results in little wear and long operation life.
(5). The pump's flow can be changed through adjusting the speed.
(6). It's specially suited to deliver high viscosity medium.

Application:

It widely to transfer liquid like oil, such as fuel oil, lubricating oil, vegetable oil, coconut oil etc, it is much better to transfer high viscosity liquid, such as asphalt, resin, latex, molasses, bitumen etc. To transfer high viscosity liquid, will choose lower speed to meet the working conditiation, increase the using life. When pump transfer coconut oil, vegetable oil, cooking oil or other liquids with corrosive, can choose stainless steel material.

>>>Model explanation

NYP means internal gear pump
7.0 means displacement L/100r
A means code of design improvement

>>>NYP7.0A internal gear pump specifications

>>>FAQ--- Frequently Asked Question

1. How to get our quotation in time, pls answer following questions:

 A.What liquid do you transfer? Oil, Water, Food or Corrosive Chemical liquid, with solid particle or not, and so on~

 B.What's the flow or capcity (m3/h, L/m)?

 C.What's the discharge head (m, feet, Mpa, bar )

 If you do not have any request, we will do as our normal standard.

 D.Contact us to get the quotation:

2. OEM: Ok

3. MOQ: 1set

4. Package: Standar export Plywood Case or Styrofoam with Carton

5. Shipping ways: By sea, By air, By express

6. Lead time: 3-15days

7. Term of  payment:  100% T/T, Aliexpress,  L/C, Westunion

8. Why choose us: 20years experiences manufacturer

                                   Good quality with competitive pirce

                                   ISO2009:8001, CE certificate

                                   Professional after-sales service
