KCB18.3
HOFFWELL
84136029
| Quantity: | |
|---|---|

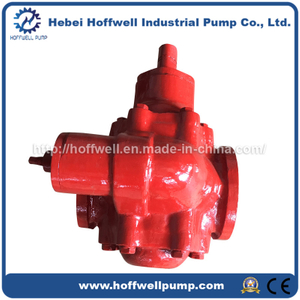

KCB Series Herringbone External Gear pump
>>>Product Features:
1. The pump is properly designed with leakage and return chute, which lets the gears bear the least torque force and reduces load and wear on bearings in order to raise pump's efficiency.
2. Less teeth and small volume; the herringbone tooth structure is of good strained condition, small vibration and puissant.
3. internal installed bearing in pump is lubricated by the conveying medium. So this pump series is just applied to conveying lubricating liquid.
>>>Application:
KCB oil gear pump with brass material can give performance as transferpump or booster pump in oil delivery system. It can be also applied as a fuel pump for dilivery system, pressurization and injection in fuel supply system and in all industry fields as lubricating pump. It is univeral type used as lubricant, delivery or supercharge pump in many industry fields.
>>>Conveyed Medium:
1. Non-corrosive lubricant without solid particles or fiber;
2. Other lubricant liquids like oil.
3. Light oil, Heavy oil, Crude oil etc.
>>>KCB18.3 Gear Oil Pump Specifications
| Model | Capacity | Head | Speed | (NPSH)r | Efficiency | Power | Frame Size |
| KCB18.3 | 1.1m3/h | 3.3bar | 1450rpm | 7m | 43% | 1.5KW | Y100L1-4 |
| Packing details | 290mm X 245mm X 320mm, with export standard wooden case. | ||||||
| Delivery time | within 5days. | ||||||
>>>FAQ--- Frequently Asked Question
1. How to get our quotation in time, please answer following questions:
A.What liquid do you transfer? Oil, Water, Food or Corrosive Chemical liquid, with solid particle or not, and so on~
B. What's the flow or capcity (m3/h, L/m)?
C.What's the discharge head (m, feet, Mpa, bar )
If you do not have any request, we will do as our normal standard.
D. Contact us to get the quotation:
2. OEM: Ok
3. MOQ: 1set
4. Package: Standar export Plywood Case or Styrofoam with Carton
5. Shipping ways: By sea, By air, By express
6. Lead time: 3-15days
7. Term of payment: 100% T/T, Aliexpress, L/C, Westunion
8. Why choose us: more than 20 years experiences manufacturer
Good quality with competitive pirce
ISO2000, CE certificate, CCS certificate
Professional after-sales service
>>>KCB Gear Oil Pump Other Model Parameters:
| Model | Capacity Q | Speed r/min | Exhaust Pressure Mpa | (NPSH)r m | Efficiency η % | Motor | ||
| m3/h | L/min | Power kw | Model | |||||
| KCB-18.3 | 1.1 | 18.3 | 1400 | 1.45 | 5 | 44 | 1.5 | Y90L-4 |
| 2CY-1.1/1.45 | ||||||||
| KCB-33.3 | 2 | 33.3 | 1420 | 1.45 | 5 | 44 | 2.2 | Y100L1-4 |
| 2CY-2/1.45 | ||||||||
| KCB-55 | 3.3 | 55 | 1400 | 0.33 | 7 | 41 | 1.5 | Y90L-4 |
| 2CY-3.3/0.33 | ||||||||
| KCB-83.3 | 5 | 83.3 | 1420 | 0.33 | 7 | 43 | 2.2 | Y100L1-4 |
| 2CY-5/0.33 | ||||||||
| KCB-135 | 8 | 135 | 940 | 0.33 | 5 | 46 | 2.2 | Y112M-6 |
| 2CY-8/0.33 | ||||||||
| KCB-200 | 12 | 200 | 1440 | 0.33 | 5 | 46 | 4 | Y112M-4 |
| 2CY-12/0.33 | ||||||||
| KCB-300 | 18 | 300 | 960 | 0.36 | 5 | 42 | 5.5 | Y132M2-6 |
| 2CY-18/0.36 | ||||||||
| KCB-483.3 | 29 | 483.3 | 1440 | 0.36 | 5.5 | 42 | 11 | Y160M-4 |
| 2CY-29/0.36 | ||||||||
| KCB-633 | 38 | 633 | 970 | 0.28 | 6 | 43 | 11 | Y160L-6 |
| 2CY-38/0.28 | ||||||||
| KCB-960 | 58 | 960 | 1470 | 0.28 | 6.5 | 43 | 18.5 | Y180M-4 |
| 2CY-58/0.28 | ||||||||
| KCB-1200 | 72 | 1200 | 740 | 0.6 | 7 | 43 | 37 | Y280S-8 |
| KCB-1600 | 95 | 1600 | 980 | 45 | Y280S-6 | |||
| KCB-1800 | 112 | 1800 | 740 | 0.6 | 7.5 | 43 | 55 | Y315S-8 |
| KCB-2500 | 150 | 2500 | 985 | 75 | Y315S-6 | |||
| KCB-2850 | 170 | 2850 | 740 | 0.6 | 8 | 44 | 90 | Y315L1-8 |
| KCB-3800 | 230 | 3800 | 989 | 110 | Y315L1-6 | |||
| KCB-4100 | 245 | 4100 | 743 | 0.6 | 8 | 44 | 132 | Y355M1-8 |
| KCB-5400 | 325 | 5400 | 989 | 160 | Y355M1-6 | |||
| KCB-5600 | 330 | 5600 | 744 | 0.6 | 8 | 44 | 160 | Y355M2-8 |
| KCB-7600 | 460 | 7600 | 989 | 200 | Y355M3-6 | |||
| KCB-7000 | 420 | 7000 | 744 | 0.6 | 8 | 44 | 185 | Y355L1-8 |
| KCB-9600 | 570 | 9600 | 989 | 250 | Y355L2-6 | |||
